    Pipelines Control Fire Rated Electrical Cable Environmental Protection

    Ask Lasest Price
    Brand Name : QINGDAO YICABLE CABLE
    Model Number :
    Certification : CE/KEMA/CCC/TUV
    Price : USD 0.4 To 10.5 per Meter
    Supply Ability : 8KM per Day
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

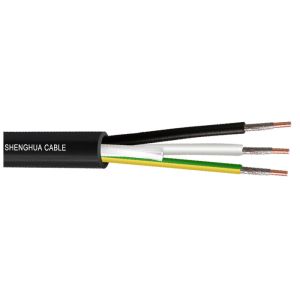

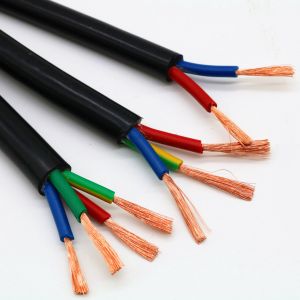

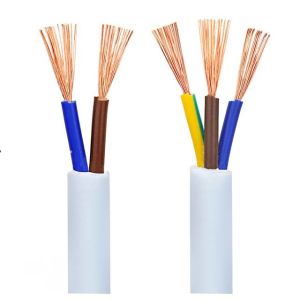

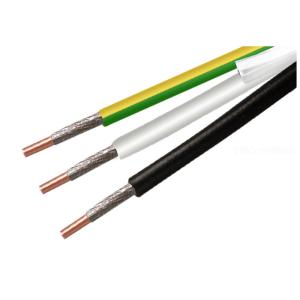

    Pipelines Control Fire Rated Electrical Cable Environmental Protection

    Pipelines Control Fire Rated Electrical Cable Environmental Protection

    Construction:

    Conductor: Solid or Stranded Copper Conductor
    With Mica-tape
    Insualtion: PVC
    Sheath: PVC

    Standard:

    IEC Standard: IEC 60227, IEC60228,IEC 60331
    China Standard: GB9330,GB12666
    Other standards such as BS,DIN and ICEA upon request

    The Advantage

    We use the Mica-tape to cover the Conductor, when the fire accident happen,the mica-tape could hold the cable translate the electric for a while,so people can use electric equipment to keep themselves safe.

    Technical data

    Rated voltage: 450/750V
    Maximum Conductor Temperature: under normal (70℃), emergency (100 or short circuit no more than 5 s (160℃) conditions.
    Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
    Min. Bending Radius: 6 x cable O.D

    Certificates

    CE, RoHS, CCC, KEMA and more others at request

    Application:

    Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.


    Specifications:

    Cross-Sectional
    Area mm2
    Thickness of
    Insulation
    Thickness of
    Sheath
    Overall DiameterMin resistance of
    insulation at
    70℃ MΩ/km
    Max.D.C resistance
    of at 20℃
    MΩ/km
    Approx Weight
    (kg/km)
    minmax
    2x0.750.61.26.78.10.01224.559
    2x10.61.278.50.01118.167
    2x1.50.71.27.99.50.01112.186
    2x2.50.81.2910.90.017.41120
    2x40.81.29.911.90.00854.61167
    2x60.81.210.813.10.0073.08220
    3x0.750.61.27.18.50.01224.571
    3x10.61.27.48.90.01118.182
    3x1.50.71.28.3100.01112.1108
    3x2.50.81.29.511.50.017.41154
    3x40.81.210.512.40.00854.61210
    3x60.81.211.513.90.0073.08310


    FAQ
    Q: How long does it take to get a quote back?
    A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
    Q: What warranties do your products carry?
    A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
    1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
    2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
    3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
    4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
    Q: Do you sell other products besides wire and cable?
    A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.

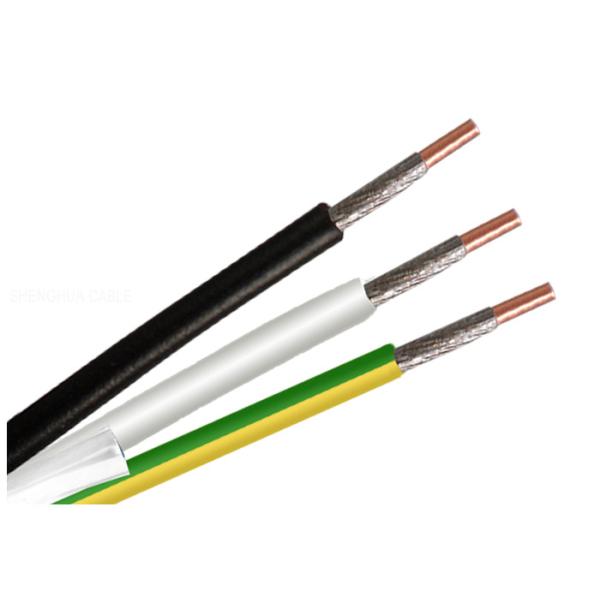

    Quality Pipelines Control Fire Rated Electrical Cable Environmental Protection for sale
