Small Chaff Straw Crusher Poultry Animal Cattle Feed Grass Shredder
Silage Chopper Fodder Forage Hay Chaff Cutter
The grass hay cutter machine is suitable for cutting, rubbing and
processing of corn stalks, sorghum stalks, wheat straw, straw,
straw, branches, cotton stalks, peanut seedlings and other crops,
so that the straw becomes a soft feed, which is convenient for the
digestion and absorption of livestock. It is beneficial to the
drying, baling, transportation and storage of materials.
1. Large yield,Especially suitable for large-scale farms
2. reference details.
3. hay yield in grass cutting length is 18mm, continuous feeding
conditions
* Green corn stalk (78% water content) 4.5t/h
*dried corn stalks (17% moisture content)1.6t/h
* Dry rice straw (17% moisture content) 1.3t/h
* Dry wheat straw (17% water) 1t/h
* dry alfalfa (moisture content 20%) 1.5t/h
4. Cutting length(mm):12.18.28cm
5. Blowing Distance of final piece(m):4-6m
Working Principle of Hay Wet Grass Crusher
Hay cutter is used for hay cutter cutting green (dry) corn straw,
straw and other crops straw and forage agricultural animal
husbandry machinery.
This series hay cutter is mainly composed of feeding mechanism,
throwing mechanism, transmission mechanism, walking mechanism,
anti-collision device and rack, etc. The components are as follows:
1. Feeding mechanism: mainly composed of feeding table, upper and
lower groove rod, fixed blade and fixed knife supporting seat.
2. grass cutting throw mechanism: mainly by moving knife, knife
plate, locking screws and so on.
3. transmission mechanism: mainly composed of triangle belt, drive
shaft, gear, universal joint and so on.
4. walking mechanism: mainly composed of casters.
5. Protective device: composed of protective cover.
Technical Parameter
| Model | 9ZC-20 | 9ZC-40 | 9ZC-50 | 9ZC-80 | 9ZC-100 |
Power (electric motor) | 2.2KW | 4KW | 5.5KW | 7.5KW | 15KW |
| Speed(rpm) | 2800 | 1400 | 1400 | 1400 | 1400 |
Engine (Tractor diesel) | ≥6HP | ≥8HP | ≥12HP | ≥15HP | ≥20HP |
| Capacity | 1-2T/H | 3-4T/H | 5-6T/H | 7-8T/H | 9-12T/H |
| Cut length | 10-50MM | 10-50MM | 10-50MM | 10-50MM | 10-50MM |
| Work size | 0.96*0.42*1M | 1.23*1.15*1.7M | 1.74*1.6*2.3M | 2.2*1.6*2.8M | 2.62*2.2*4.1M |
| Package size | 0.6*0.4*0.6M | 1*0.6*1.1M | 1.1*0.7*1.3M | 1.4*0.8*1.6M | 2.62*1.7*1.9 M |
Main features of grass chaff cutter
1. Steel structure frame, small size, light weight, easy to move.
2. The safety device is designed to prevent knife gnawing
accidents, and the whole machine is safe and reliable.
3. The grass roller drive shaft adopts universal joint, which has
compact structure, flexible operation and convenient
disassembly and assembly.
4. An automatic feeding and feeding device is added to effectively
prevent blockage and uneven feeding.
5. Use physical action such as guillotine, knocking, kneading,
rubbing, etc. to turn into silk flakes with uniform length and
softness.
6. Various choices of supporting power, electric motor, diesel
engine and tractor can be matched, especially suitable for areas
lacking power.
7. The blade is made of high-quality steel, refined by a special
process, and has strong wear resistance; high-strength bolts are
used, which is safe and reliable to use.
8. The casing is made of thickened steel plates and continuously
welded, the overall mold is formed, and the anti-counterfeiting
trademark is pressed, which is beautiful and generous.
9. The cost performance is superior, and the price of the
guillotine machine with the same productivity is low.
Chaffcutter Application
The chopper chaff cutter machine is used to cut green and dry corn
stalks, wheat straw, rice straw and other crop stalks and pastures.
The processed materials are suitable for breeding cattle, sheep,
deer, horses, etc., and can also process cotton stalks, branches,
bark, etc. for straw power generation, ethanol extraction,
papermaking, wood-based panels and other industries.
The processed forage grass is soft, unwilling to stick, free of
hard knots, and has a high feed intake rate of livestock. It can
also improve the uniformity of mixing forage grass with other
concentrated feeds, reduce waste and reduce livestock raising
costs.

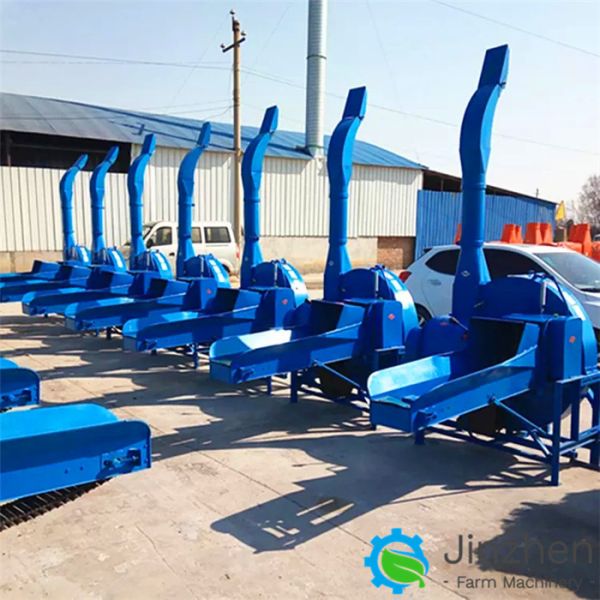

Picture of chaff cutter
