    KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : KMC-YXC150
    Certification : CE
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week negotiable
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

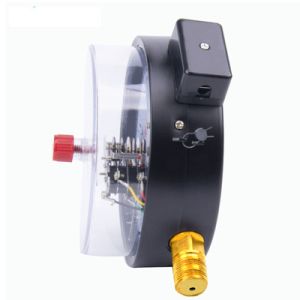

    KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge

    KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge

    Product Introduction

    The KMC-YXC150 Stainless Steel Shockproof Electric Contact Pressure Gauge is a robust industrial instrument designed for precise pressure measurement in harsh environments. With a range of 0–60MPa, it is suitable for non-corrosive liquids, gases, and other media that pose no explosion hazard to copper alloys. The gauge features a stainless-steel housing and shockproof design, ensuring reliable performance in vibrating or impact-prone conditions. Its electric contact mechanism enables automatic switching for pressure-based control or alarm systems, making it ideal for industrial process monitoring and safety applications.

    Key Features

    • Wide Measurement Range: 0–60MPa capacity for high-pressure industrial systems, including hydraulic, oil, and gas applications.
    • Shockproof & Corrosion-Resistant: Stainless-steel construction with electroplated finish resists corrosion and withstands mechanical shocks.
    • Electric Contact Functionality: Integrates electrical contacts to trigger alarms or control circuits when pressure reaches preset limits (220V/380V operating voltage, 30VA power).
    • Versatile Design: Available in anti-vibration, corrosion-resistant, and combined anti-vibration/corrosion-resistant models, with over 10 variants featuring isolation devices.
    • Clear Visual Indication: 145mm dial diameter for easy on-site pressure reading, with customizable multi-unit display panels (e.g., PSI, kPa, MPa).
    • Harsh Environment Suitability: Operates in temperatures from -40°C to 70°C, suitable for extreme industrial conditions.
    • Technical Specifications

    Technical Specifications

    Product nameelectro connecting pressure gauge
    Product modelKMC-YXC150
    dial diameter145MM
    Sub waythread M20*1.5
    operating temperature-40~70℃
    measuring range0~60MPA
    working voltage220V 380V general
    Power30VA
