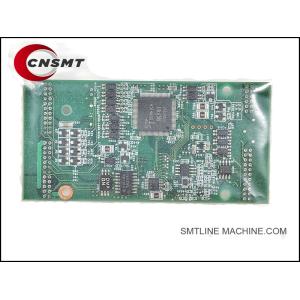

FUJI 2AGKHA000402 V12 Working Head Motherboard SMT Spare Parts

FUJI 2AGKHA000402 V12 working head motherboard

Our company has been in operation for 11 years and will definitely be your best choice with guaranteed quality and fast delivery

Product Description

Name: FUJI NXT V12 Working Head Motherboard
Part Number: 2AGKHA000402
Compatible Machine: FUJI NXT Series SMT pick-and-place equipment

Key Features

OEM-caliber PCB designed for the V12 placement head, responsible for coordinating motor control, sensor integration, and communication with the machine’s central controller.
Manufactured to FUJI specifications with high reliability and stability.
This core board is essential for proper head operation and placement accuracy.

Availability

Stocked in China, ready for shipping within 1–5 days, MOQ: 1 piece Channels also available in Japan source .
Pricing is negotiable with global shipping support.

Use Cases

Ideal for replacing a faulty motherboard in the V12 head of an NXT series machine.
Serves maintenance teams maintaining FUJI SMT placement performance and production reliability.
Useful for backup stock in repair shops servicing FUJI NXT heads.

Technical Notes

OEM part made for FUJI NXT V12 heads, ensuring correct fit, connectors, and firmware compatibility.
Handles electrical control of camera, nozzle mechanisms, and precision placement motors.
Frequently sold alongside other V12 head components (e.g., backup pins, camera PCBs) .

FUJI NXT V12 Working Head – Related Part Numbers

Recommended Spare Kit for V12 Head

Motherboard (2AGKHA000402) – Core control
Camera Board (2AGKHA01400) – For visual alignment
Drive PCB + Encoder + Motor – For movement control
Cables + Backup Pins + Nozzles – For regular maintenance and replacement

FUJI NXT V12 Working Head – Related Accessories

Typical Spare Part Package Suggestion

Main Control Board + Camera Board – Core electronics
Motor + Encoder + Drive Board – Motion control group
Cable Harness + Sensors – Signal and feedback circuits
Nozzle Holders + Mechanical Backup Pins – Mechanical stability and safety

FAQ about YAMAHA Vibration Vibration Fit YV YS Series Vibration Fit Three Tube Five Tube Vibration Fit

FAQ – YAMAHA Vibration Fit YV/YS Series (ThreeTube & FiveTube)

General Information

Q1: What is the Yamaha Vibration Fit?

A:
The Yamaha Vibration Fit is a sticktype component feeder that uses vibration to advance components from tubes onto the SMT pickandplace machine. It is commonly used for components supplied in stick/tube packaging, like connectors, ICs, and oddform components.

Specifications & Compatibility

Q2: Which machines are compatible with the Yamaha Vibration Fit?

A:

Yamaha YV series machines (e.g., YV100, YV88)
Yamaha YS series machines (e.g., YS12, YS24, YS88)
Compatible with most Yamaha SMT equipment supporting stick/tube feeders

Q3: What are the types available?

A:

ThreeTube Vibration Feeder: Feeds up to 3 component tubes simultaneously.
FiveTube Vibration Feeder: Feeds up to 5 component tubes simultaneously.

Q4: What are the main parameters?

Installation & Setup

Q5: How is the Vibration Feeder installed?

A:

Mount on the machine’s feeder base just like a tape feeder.
Connect the power/control cable (standard Yamaha feeder connector).
Insert the component tubes into the holder slots (3 or 5 tubes depending on model).
Adjust vibration intensity according to component type.

Q6: Is calibration required?

A:
Minimal. Only vibration strength needs adjustment for different component weights and sizes.

Troubleshooting

Q7: Common failure symptoms?

A:

Components do not advance smoothly.
Excessive vibration causing component damage.
No vibration (check power or wiring).
Misfeeds due to tube misalignment.

Q8: How to solve feeding issues?

A:

Check vibration intensity; reduce for lighter components.
Ensure tubes are correctly seated in the holder.
Verify the vibration motor and PCB are functioning.
Check for loose cables or faulty connectors.

Maintenance

Q9: How often should maintenance be done?

A:

Basic cleaning: Weekly or biweekly.
Full inspection (motor, PCB, springs, fasteners): Every 6 months.

Q10: What maintenance tasks are needed?

A:

Clean dust and debris from the vibration platform.
Check mounting screws and tube holders for tightness.
Inspect the vibration motor and PCB for damage.
Verify connector integrity and wiring.

Related Parts & Accessories

Applicable Models

YV series: YV100X, YV100II, YV88, YV112
YS series: YS12, YS24, YS88, YS100, YS12F, YS12P

Additional Support

Installation manuals
Wiring diagrams
Maintenance checklists
BOM lists and parts sourcing

Conclusion

The Yamaha Vibration Fit (3tube & 5tube) is a robust, essential tool for handling components in stick/tube packaging. With proper setup and maintenance, it ensures reliable feeding and improves production efficiency for YV/YS SMT machines.
