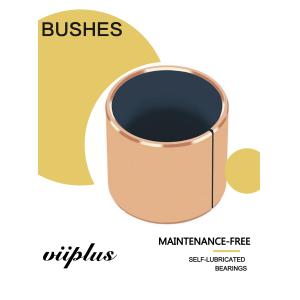

The MSO2 bushing bearings with a bronze-backed layer are renowned for their exceptional performance and durability. Made with high-quality (Polytetrafluoroethylene), these bearings are designed to handle demanding applications while maintaining optimal efficiency.

The bronze backing provides excellent strength and rigidity, while the layer offers exceptional wear resistance, low friction, and good chemical stability. This combination ensures that the bearings can withstand heavy loads, high speeds, and even harsh environments with minimal wear and tear.

The high-quality material used in these bearings also ensures superior lubrication, which helps reduce friction and heat generation, leading to longer bearing life and improved performance. Additionally, the bearings are precision-engineered to ensure smooth operation and minimal noise.

Overall, MSO2 bushing bearings with a bronze-backed layer are a reliable and cost-effective solution for various industrial applications, including machinery, automotive, and aerospace.

composite sliding bearing, steel/bronze, solid lubricant, maintenance-free.

Overview of Bearing Materials & Products

MSO2 Bushing Bearings,Steel backed with a layer of sintered tin/bronze, pores filled and covered with a running-in layer of with molybdenum disulphide additives.

Straight Bushing Flange Bushing Thrust Washer Sliding Plate Custom-made Products

Oil/Gas Composite Polymer Bearings Power Energy pipelines Drilling Bushing Growth & Innovation

VIIPLUS is made to order from china in the development of self-lubricating bearings friction technology used in Energy Oil/Gas components and system solutions.The oil and gas industry has high demands for polymer bearings. Extreme temperatures and high loads, near-constant use, plus the increasing scrutiny of the industry’s impact on the environment are all top challenges.
We sell an extensive range of Polymer Bearing Composite with varying amounts of technical data. Please assist us to provide you with accurate
information by placing your orders and enquiries online or by e-mail
Polymer bearing materials have been specifically engineered for oil & gas applications.

Bearings Bronze Backed Plain Bearing

Bronze base bearing self-lubricating bearing tin bronze, is based on tin bronze as the matrix, the middle sintered bronze spherical powder, surface rolling PTEE and high temperature resistant filler material.
The product in a special recipe of high density copper alloy substrate, sintered porous bronze layer. Surface rolling a mixture of and Pb. It can provide good self-lubricating, wear resistance, low friction, such as performance, give full play to the advantages of metal and multi-element polymer. Bushings used in the industries of metallurgy, continuous casting and rolling mill, cement machinery, screw conveyor and so on.

• Mining & quarrying
• Heavy construction
• Motorsport
• Offshore oil & gas
• Marine
• Slide pads used in pipelines
• Wear pads on the elastomeric casing guides used in oil and gas drilling
• Drop-in composite replacements for bronze bearings used on the drill spoolers in offshore drilling equipment.

VSB-11 Bronze Backed Plain Bearing
· Very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Suitable for lubricated applications
· Suitable for linear, oscillating and rotating movements
· Bronze back offers improved corrosion resistance in humid/saline environments
· Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surface, suitable for rotary and oscillating movement.
· Very high chemical resistance, low absorption of water and swelling, also performs very good lubrication feature, the bronze backing provides the improved corrosion resistance comparing with VSB-10.

1. /fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the /Fibre mixture.
3. Bronze backing, provides exceptionally high load carrying capacity, excellent heat dissipation and very good corrosion resistance.

· Metal-Polymer Composite Material
· Bronze Back + Porous Bronze Sinter +
· + Lead

Availability​

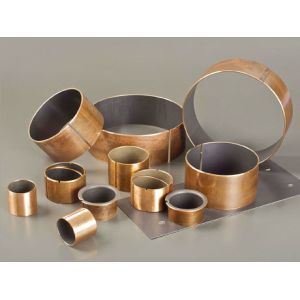

Bearing forms available in standard dimensions
· Cylindrical bushes

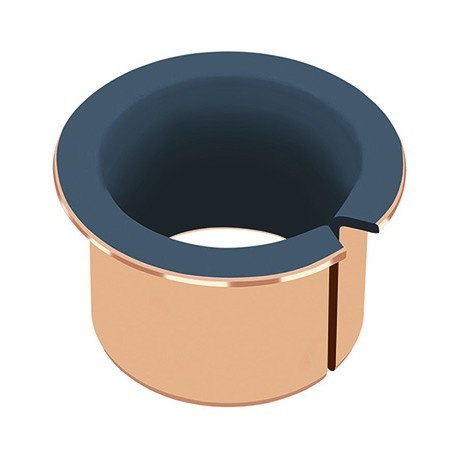

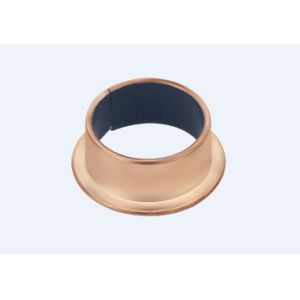

· Flanged bushes
· Sliding plates
Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs

Beyond Grease: A Deep Dive into Oilless Bushings & Why Viiplus Leads the Way

Friction is the enemy of efficiency. In countless machines, from massive industrial equipment to intricate automotive components, the constant battle against wear and tear dictates performance, longevity, and maintenance costs. Traditionally, grease and oil have been the go-to solutions, but they come with their own set of challenges: frequent re-lubrication, potential contamination, environmental concerns, and limitations in extreme conditions.

Enter the world of oilless bushings, also known as self-lubricating bearings or sliding bearings. These innovative components offer a smarter way to manage friction, delivering reliable movement without the need for external lubrication.

At Viiplus (www.viiplus.com), we don't just supply these components; we engineer solutions. Leveraging deep expertise in metallurgy and tribology (the science of friction, wear, and lubrication), we've become a leading name in sliding bearing technology. But what exactly are oilless bushings, and why should they be on your radar? Let's dive deeper.

What Exactly Are Oilless Bushings? The Science of Self-Lubrication

Unlike traditional ball or roller bearings that rely on rolling elements and require constant lubrication films, oilless bushings operate on the principle of sliding motion. Their "magic" lies in their material composition and structure, designed to provide their own lubrication at the bearing surface. This can be achieved through several key technologies:

1. Solid Lubricants Embedded: Materials like graphite, MoS₂, or PTFE are embedded directly into the metallic matrix (often bronze) of the bushing. As the shaft rotates or slides, a minuscule amount of this solid lubricant is transferred to the mating surface, creating a low-friction film.

2. Porous Metal Structures: Sintered bronze or iron materials are created with microscopic pores. These pores are vacuum-impregnated with oil during manufacturing. In operation, slight heating causes the oil to expand and seep onto the bearing surface, providing lubrication. When it cools, the capillary action draws the oil back in, creating a closed-loop system.

3. Layered Composites: These often feature a strong backing (like steel), an intermediate sintered layer (like bronze), and a low-friction overlay (often PTFE-based). The PTFE layer provides the primary sliding surface, offering extremely low friction.

4.

Contrasting Logic: Oilless vs. Traditionally Lubricated Bearings

The Tangible Benefits: Why Make the Switch?

Choosing oilless bushings isn't just about eliminating grease guns. It's about unlocking significant operational advantages:

• Drastically Reduced Maintenance: This is the most obvious benefit. No re-greasing means less labor, less scheduled downtime, and simplified maintenance protocols. Imagine the savings across a factory floor!

• Enhanced Reliability: Lubricant starvation is a major cause of bearing failure. Self-lubricating bearings ensure consistent lubrication, leading to predictable performance and longer service life, especially in hard-to-reach locations.

• Superior Performance in Harsh Conditions: Oilless bushings excel where traditional lubricants fail:

  • High Temperatures: Certain types can operate at temperatures far exceeding the limits of conventional greases.

  • Low Temperatures: No grease means no stiffening or freezing issues.

  • Contaminated Environments: The absence of sticky grease reduces the ingress of dirt, dust, and debris.

  • Vacuum or Underwater: Ideal for applications where liquid lubricants are impractical or impossible.

  •
  •
  •
  •
  •
  •
  •

• Cost Savings (Total Cost of Ownership): While the initial purchase price might sometimes be higher, the TCO is often significantly lower due to savings on lubricants, labor, downtime, and potential component failure replacement.

• Environmental Friendliness: Eliminating oil and grease leakage prevents contamination of products, machinery, and the environment. Crucial for industries like food processing, pharmaceuticals, and textiles.

• Compact & Simplified Designs: Without the need for lubrication systems (nipples, lines, reservoirs), machine designs can be more compact and streamlined.

•

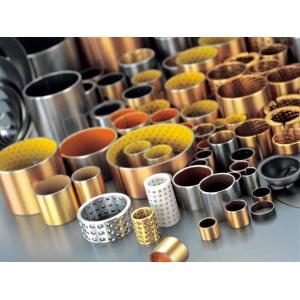

Exploring Viiplus's Portfolio: Finding Your Solution

Viiplus offers a comprehensive range of self-lubricating bearings designed to meet diverse application needs. Understanding the different series helps in selection:

• JDB Series (Graphite Plugged Bronze): Excellent for high-load, low-speed applications, intermittent motion, and high temperatures. The graphite plugs provide continuous solid lubrication. Ideal for heavy machinery, molds, and hydraulic components.

• SF Series (PTFE-Based Composite): Typically metal-backed (SF-1: steel, SF-2: steel/bronze) with a PTFE-based lining. Offers very low friction, good wear resistance, and suitability for dry running or marginal lubrication. Common in automotive, office equipment, and hydraulics.

• JF Series (Bimetal Bushings): Combines a steel backing with a sintered bronze or lead-bronze lining. Good load capacity and fatigue strength. Often used with grease or oil but can operate marginally lubricated. Found in engines, chassis parts, and agricultural machinery.

• FB Series (Wrapped Bronze): Often made from bronze strip, sometimes with lubrication pockets or through-holes. A cost-effective solution for medium loads and speeds, typically requiring initial greasing but offering extended re-lubrication intervals.

•

Quick Comparison Chart (General Guide):

(Note: This is a simplified guide. Always consult specific product data sheets or Viiplus experts for precise application requirements.)

Uncertain which material or type suits your project? Our Bushing Material Selection Guide is designed to help, or Contact Us for a Free Quote and Expert Advice.

Why Partner with Viiplus? Expertise Meets Quality

Choosing the right supplier is as critical as choosing the right bushing. Here’s why companies worldwide trust Viiplus:

• Deep Expertise: Our foundation in metallurgy and tribology, coupled with a talented R&D team, means we understand the science behind reliable movement. We don't just sell; we solve friction challenges.

• Uncompromising Quality: We employ advanced manufacturing techniques (including sand casting, centrifugal casting, metal casting, investment casting) and a rigorous quality management system, ensuring every bushing meets the highest standards.

• Comprehensive Range: From standard metric sizes in JDB, SF, JF, and FB series to custom solutions including cylindrical, flange, double flange bushings, wear plates, and guide rails – we have the portfolio to match your needs.

• Global Reach, Seamless Logistics: Based in China, we ship sliding bearings worldwide. Our professional team handles customs clearance efficiently, ensuring smooth, timely delivery with all necessary documentation.

• Customer-Centric Approach: We believe in ethical practices and building trust. We offer flexible production (single units to large series), competitive pricing, and  online support.

•
