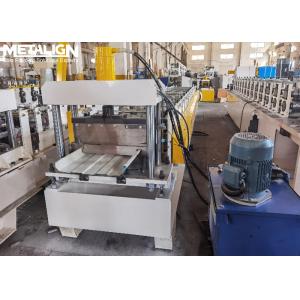

High Precision Standing Seam Roofing Roll Forming Machine With Chain Drive And Hydraulic Cutter

1. Production Line Overview

This roll forming production line is designed for producing standing seam metal roofing profiles, offering reliable performance for both commercial and residential roofing applications. It uses high-strength galvanized steel, ensuring durable, weather-resistant roofing systems. The line is suitable for companies seeking efficiency, flexibility, and long-term cost savings in their roofing production.

2. Profile Overview

This profile is made of high-strength galvanized steel, with a thickness range of 0.3mm to 0.8mm. It features a clip-lock design, offering superior interlocking capabilities. The standing seam profile is widely used in both commercial and residential roofing applications, providing excellent water resistance and durability under harsh weather conditions. Ideal for energy-efficient and low-maintenance roof systems.

3. Production Process

Flow Chart:

Hydraulic Decoiler - Guide - Roll Former - Hydraulic Cutter - Out Table

Process:

This production line efficiently uncoils, guides, forms, and cuts high-quality standing seam profiles. The roll forming machine features a wall plate structure and chain drive for consistent performance, while the hydraulic cutter ensures precise and clean cuts. The out table facilitates smooth handling and packaging of finished products.

4. Technical Parameters

5. Key Focus

• Efficient Roll Forming: Ensures smooth, high-quality standing seam profiles with reliable output.

• Hydraulic Cutting: Offers clean, precise cuts, ensuring superior profile quality.

• Cost-Effective Solution: Low maintenance, long-lasting equipment ideal for both small and large production needs.

• Flexible Production: Compatible with different steel thicknesses and profile designs, accommodating various customer demands.

6. Production Line Components

7. Customization Options

We offer full customization options for this standing seam production line, including adjustments in the forming machine configuration, hydraulic cutter options, and out table layout. Customers can choose between manual or automatic out tables, as well as tailored forming rolls to create specific standing seam profiles, such as double lock or snap lock profiles. We can also adapt the line for different steel thicknesses and coatings, ensuring flexibility for different market needs.

Metalign is a trusted manufacturer specializing in cold roll forming machine production and custom roll forming solutions. Located in Botou City, the heart of China’s roll forming industry, we bring over 30 years of combined technical and engineering experience to every project.

Our team is dedicated to designing and building precision roll forming lines tailored to your profile needs — from roofing and purlin lines to shelving, door frames, highway guardrails, and more. We are known for our practical designs, robust structures, and responsive after-sales support.

With a strong reputation in global markets including North America, Europe, Southeast Asia, and the Middle East, Metalign is committed to helping customers improve efficiency, reduce costs, and gain a competitive edge.
