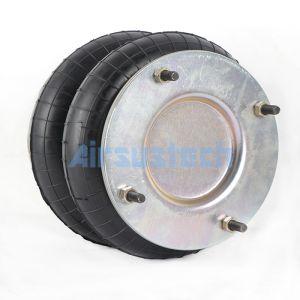

    10×2 Pneumatic Air Bellows Parker 9109021 Double Convoluted Air Spring Assembly

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B10×2T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    10×2 Pneumatic Air Bellows Parker 9109021 Double Convoluted Air Spring Assembly

    10×2 Pneumatic Air Bellows Parker 9109021 Double Convoluted Air Spring Assembly


    Product Description


    Model Number12×2
    StandardOEM Standard
    Replaces ForFirestone, Dunlop, Contitech, Parker...
    MaterialNatural Rubber
    Bellows TypeDouble Convolutions
    BrandAIRSUSTECH


    12×2 Air Bags Specifications


    Diameter of the Top Cover Plate: 210 mm
    Center-to-Center Distance of Screws on the Top Cover Plate: 181 mm
    Diameter of the Bottom Cover Plate: 210 mm
    Center-to-Center Distance of Screws on the Bottom Cover Plate: 181 mm
    Screw (Nut) Thread Count for the Top Cover Plate: 4×M10
    Screw (Nut) Thread Count for the Bottom Cover Plate: 4×M10
    Air Connection: G1/2

    Natural Diameter of Rubber Bellow: 250 mm
    Design Height: 190 mm


    Alternative Items


    Original Part NumberCross ReferenceOriginal Part NumberCross Reference
    Parker9109021Firestone

    W01-R58-4058

    W01R584058

    W01 R58 4058

    Dunlop Pneuride

    10''×2

    10'×2

    10×2

    Dunlop

    PNP 305450112

    PNP305450112

    Dunlop Springride

    SP1538

    SP 1538

    SP 15 38

    Airbag ManDB1028
    Contitech

    FD 210-22 DS

    FD 21022 DS

    FD 210 22 DS

    Norgren

    M/31102

    M31102

    M 31102


    What Is Pneumatic Air Rubber Bellows?


    Air bellows are ideal for single-acting, short-stroke, high-thrust actuators. They are made of fabric-reinforced synthetic rubber and are available in single, double, or triple configurations, depending on the stroke and model. They contain no reciprocating metal parts, allowing for virtually frictionless thrust compared to conventional cylinders.


    • 10 sizes, diameter 70-660 mm

    • Stroke 45 to 375 mm

    • Single, double or triple turn

    • High thrust, frictionless motion

    • Maintenance-free


    Other Kinds of Rubber Air Springs


    Nominal Diameter (Inches)Air ConnectionMax. Force (N) at 1 Bar (0 Stroke)Max. Stroke (MM)Part Number
    70 (2 3/4×2)G1/4400509109009
    110 (4 1/2×2)G3/8900809109401
    150 (6×2)G1/218001129109001A
    200 (8×2)G1/230001809109011
    250 (10×2)G1/248002009109021
    300 (12×2)G1/268001959109041
    370 (14 1/2×2)G1/2100002259109061
    410 (16×2)G1/2114002509109171
    550 (21 1/2×2)G3/4240003009109150
    660 (26×2)G3/4308003109109156

    2B12×2T Real Pictures


    Factory Workshop
