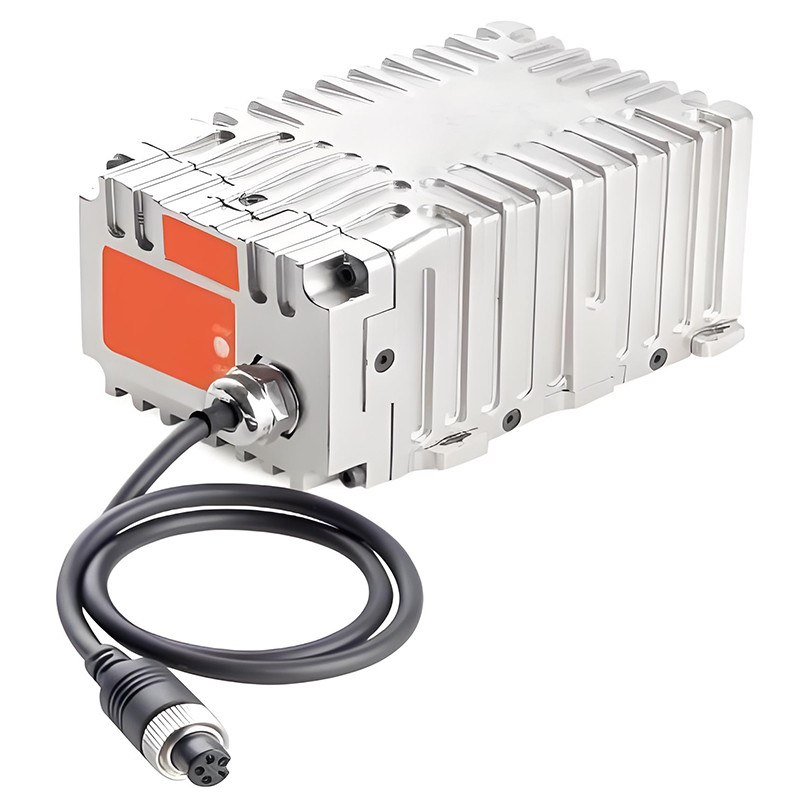

    Train Intelligent Computing Board Modular Architecture Event Recorder

    Ask Lasest Price
    Brand Name : HTR
    Price : negotiable
    Payment Terms : L/C,T/T,Western Union,Paypal
    Supply Ability : 1,000 pcs/month
    Delivery Time : 15-50 days, depends on QTY
    • Product Details
    • Company Profile

    Train Intelligent Computing Board Modular Architecture Event Recorder

    Product Description
    The HengtaiRail Railway Event Recorder features event recording functionality and is applied in high-speed rail, urban rail transit, and locomotive sectors. The recorder adopts a modular design, ranging from compact sizes to 19-inch standard frame models.

    Platform Features:
    · Modular architecture, adopting a master-slave chassis structure;
    · High-performance intelligent computing board, with expandable computing power based on requirements;
    · Vehicle-to-ground wireless transmission function (4G/5G/WIFI) & BD/GPS dual-mode positioning;
    · Supports various field buses such as MVB, TRDP, CAN, Ethernet, RS485422232;
    · Comprehensive configuration management and analysis software;
    · Protection module compliant with IEEE1482.1-2013 and IEC62625-2013 standards;
    · Highly flexible and adjustable main unit configuration for different vehicle types, maximizing cost optimization.

    Specification

    Name

    Parameters

    CPU

    ARM Series, X86 Series, Domestic Rockchip, Loongson Series Optional

    Memory

    1-16GB Optional

    Power Supply

    110 VD±30%

    Power Consumption

    Max 30W

    Vehicle Bus Interface

    2XMVB(EMD)
    2XTRDP
    2XCAN

    Serial Port

    RS485

    WiFi

    Supports 802.11b/g/n RF(2.412GHz~2.472GHz)Wireless Protocol

    4G/5G

    Supports Max Downlink Rate 150Mbps and Max Uplink Rate 50Mbps

    Maintenance Interface

    USB, ETHERNET

    I/O

    Digital Input: High Level+12to 154VDC
    Frequency Input: Rectangular,Max f 10kHz
    Analog Input: 0to 10Vor 4to 20mA
    Analog Output: 0 to 10Vor4to 20mA
    Transistor Output: Open Collector
    Relay: Switching Contact

    Storage Capacity

    8-128GB

    Operating Temperature

    -40°Cto+70°C(Heating function starts below-30°C), Short-term (10 min)up to 85°C

    Storage Temperature

    -40°c to+85°c
