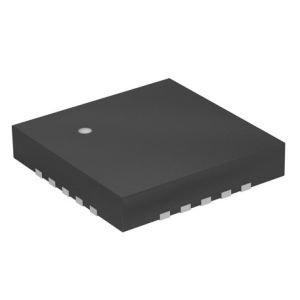

ATTINY24A-MUR 20MHz 8-bit MCU 2KB Flash 128B SRAM 12 I/O Pins UART/SPI 1.8-5.5V -40°C to +85°C

ATTINY24A-MUR

Features

• High Performance, Low Power AVR® 8-bit Microcontroller

• Advanced RISC Architecture– 120 Powerful Instructions – Most Single Clock Cycle Execution– 32 x 8 General Purpose Working Registers– Fully Static Operation

• High Endurance, Non-volatile Memory Segments– 2K/4K/8K Bytes of In-System, Self-programmable Flash Program Memory

• Endurance: 10,000 Write/Erase Cycles– 128/256/512 Bytes of In-System Programmable EEPROM

• Endurance: 100,000 Write/Erase Cycles– 128/256/512 Bytes of Internal SRAM– Data Retention: 20 years at 85°C / 100 years at 25°C– Programming Lock for Self-programming Flash & EEPROM Data Security

• Peripheral Features– One 8-bit and One 16-bit Timer/Counter with Two PWM Channels, Each– 10-bit ADC

• 8 Single-ended Channels

• 12 Differential ADC Channel Pairs with Programmable Gain (1x / 20x)– Programmable Watchdog Timer with Separate On-chip Oscillator– On-chip Analog Comparator– Universal Serial Interface

• Special Microcontroller Features– debugWIRE On-chip Debug System– In-System Programmable via SPI Port– Internal and External Interrupt Sources

• Pin Change Interrupt on 12 Pins– Low Power Idle, ADC Noise Reduction, Standby and Power-down Modes– Enhanced Power-on Reset Circuit– Programmable Brown-out Detection Circuit with Software Disable Function– Internal Calibrated Oscillator– On-chip Temperature Sensor

• I/O and Packages– Available in 20-pin QFN/MLF/VQFN, 14-pin SOIC, 14-pin PDIP and 15-ball UFBGA– Twelve Programmable I/O Lines

• Operating Voltage:– 1.8 – 5.5V

• Speed Grade:– 0 – 4 MHz @ 1.8 – 5.5V– 0 – 10 MHz @ 2.7 – 5.5V– 0 – 20 MHz @ 4.5 – 5.5V

• Industrial Temperature Range: -40°C to +85°C

• Low Power Consumption– Active Mode:

• 210 µA at 1.8V and 1 MHz– Idle Mode:

• 33 µA at 1.8V and 1 MHz– Power-down Mode:

• 0.1 µA at 1.8V and 25°C
