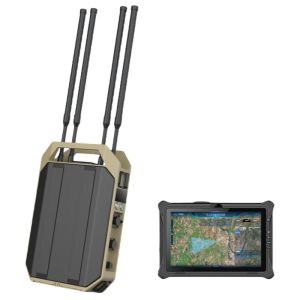

All-Scenario Drone Detection and Positioning Device
1, Device Overview
With the rapid development and popularization of drone technology,
drones have shown great application potential in aerial
photography, agriculture, rescue, security and other fields, but at
the same time they have also brought increasingly serious safety
risks. Incidents such as illegal intrusions, malicious
reconnaissance, and privacy violations occur frequently, posing
serious threats to national security, public safety, and personal
privacy. Therefore, the development of efficient and advanced drone
jamming technology has become an urgent need to maintain airspace
security and ensure social stability.
This all-in-one drone monitoring system performs comprehensive
detection across all frequency bands, precisely locating both
drones and pilots while capturing and storing FPV video feeds. It
reliably identifies all drone types - from commercial quadcopters
to DIY FPV models - even in challenging electromagnetic conditions,
with multi-mode alerts including audible, visual and vibration
warnings. Designed for security patrols, asset protection, tactical
operations and evidence gathering, it delivers complete airspace
awareness.
2, Device Usage
Incidents such as illegal intrusions, malicious reconnaissance, and
privacy violations occur frequently through drones, posing a
serious threat to national security, public safety, and personal
privacy. Therefore, the development of efficient and portable drone
countermeasures technology has become an urgent need to maintain
airspace security and ensure social stability.
3, Device Technical Parameters
| Number | Name | Specifications |
| 1 | Identification types | Supports mainstream drones such as DJI, Autel, Hubsan, as well as
FPV racing drones and DIY drones |
| 2 | Frequency range | Supports customizable scanning from 70 MHz to 6.2 GHz.
Default detection bands: 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4
GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz (other bands can be customized) |
| 3 | Positioning models | Full range of DJI drones, selected models from Autel |
| 4 | Detection range | ≥10 km for mainstream drones, ≥2 km for FPV drones |
| 5 | DID/RID positioning range | DID≥10km,RID≥3km |
| 6 | Positioning accuracy | ≤10 m |
| 7 | FPV video signal detection | Supports analog video transmission detection within the 500 MHz – 6
GHz band (customizable) |
| 8 | Detection radius | ≥1.5 km (line-of-sight, clean electromagnetic environment) |
| 9 | Video capture distance | ≥1.5 km (line-of-sight, clean electromagnetic environment) |
| 10 | Detection response time | ≤3 s (8 frequency bands); ≤5 s (12 frequency bands) |
| 11 | Power supply | Lithium battery powered |
| 12 | Battery life | ≥6 hours (main unit) |
| 13 | Device weight | ≤8 kg |
| 14 | Device dimensions | 343 mm × 230 mm × 86 mm (L × W × H) |
4, Device Features and Functions
1) Full-Band Detection:
70 MHz to 6.2 GHz wide-spectrum scanning
2) Analytical Positioning:
Monitors multidimensional data such as drone location (latitude,
longitude, azimuth), speed, flight path, and controller position
(latitude, longitude, azimuth)
3) FPV Video Capture:
Captures all analog video transmissions, enabling first-person view
analysis of FPV intrusions and real-time dynamics
4) Enhanced Detection Capability:
Detection and decryption range up to 12 km
5) Multi-Terminal Alarm Push:
Alarm information pushed to multiple mobile terminals for team
collaboration and efficient response
6) Multi-Scenario Deployment:
Supports backpack-mounted, fixed-site, and vehicle-mounted
operations
5, After-Sales service
1). We offer 24 hours service after sales
2). If there are any usage or quality issues with the product, we
provide online technical support to diagnose the cause of the
problem.
3). Should you find the products unsatisfactory, kindly return it
to us within a period of 3 months from the date of dispatch. Upon
receipt and inspection, should the products be found to be free
from any damage attributable to human factors, a full refund will
be granted. Alternatively, we can engage in discussions to amend
the product and subsequently reship the product to you.
This PI is applicable to the DDP shipping agreement.
Fault type | Faulty accessories | Service type | Note |
Hardware issues | Damaged jamming module | Mail-in new module or on-site replacement | 1 year warranty |
| Shell damage | Faulty accessories | 1 year warranty |
| Damaged bracket | Faulty accessories | 1 year warranty |
| Wiring damage | Faulty accessories | 1 year warranty |
| Damaged detection module | On-site repair or return to factory | 1 year warranty |
| Damage to other internal modules | On-site or remotely guided repairs | 1 year warranty |
| Damaged antenna | Mailing of new wiring | 1 year warranty |
Software issues
| Fault detection | Remote guidance for resolution | Lifetime |
| Jamming fault | Remote guidance for resolution | Lifetime |
| Device cannot be connected | Remote guidance for resolution | Lifetime |
| Display fault | Remote guidance for resolution | Lifetime |
