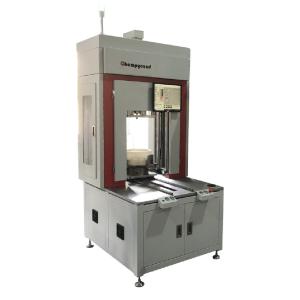

Quick Detail: Flat wire stator processing machine
Description:
Our Flat Wire Stator Pressing Machine is engineered with a
servo-driven mechanism that allows for precise, real-time pressure
control, ensuring the accuracy and uniformity of the pressing
process within a customizable range of 0-50 KN. The machine is
fitted with comprehensive monitoring capabilities that provide
oversight throughout the entire operation, with the added benefit
of a visual display showcasing the pressure curve in real time. It
also optimizes the motor's performance by maximizing the slot fill
factor and enhancing thermal conductivity.
1. Pressing Mechanism: Equipped with a servo-driven mechanism that
applies pressure to the stator core, ensuring a secure fit and
optimal performance.
2. Real-Time Pressure Control: The machine can control the pressure
in real-time during the pressing process, which is crucial for
maintaining the quality and integrity of the stator.
3. Adjustable Pressure Range: It allows for pressure settings that
can be adjusted according to different product requirements,
typically within a range of 0-50 KN.
4. Full-Process Monitoring: The machine provides continuous
monitoring from the beginning to the end of the pressing process,
ensuring every step is executed correctly.
5. Automation: Often includes automation features such as on-screen
display of pressure curve parameter values, which facilitate
precise control and repeatability.
6. Optimization of Slot Fill Factor: The machine is designed to
maximize the slot fill factor, which is the ratio of the copper
fill within the stator slots to the total slot area, contributing
to the motor's efficiency.
7. Thermal Conductivity Optimization: By ensuring a proper fit and
distribution of the stator core lamination, the machine helps
optimize thermal conductivity, aiding in heat dissipation.
8. Efficiency and Performance**: The pressing process is essential
for the motor's efficiency and overall performance, as it affects
the motor's ability to generate torque and manage heat.
