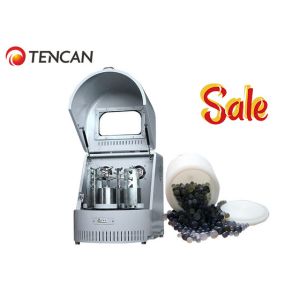

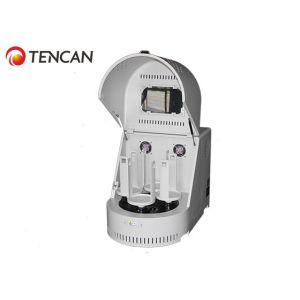

0.25kW Speed Control Frequency Control TENCAN Planetary Ball Mill for Food and Chemicals Powder Grinding 0.4L Capacity

TENCAN 0.4L Planetary Ball Mill for Food, Chemicals Powder Granding

Overview

The TENCAN 0.4L Vertical Planetary Ball Mill is an essential tool for high-tech material mixing, fine grinding, sample preparation, and small-scale production. Designed for R&D labs, universities, and industrial laboratories, this compact and efficient mill delivers high-performance grinding with low noise and versatile functionality. It can process four samples simultaneously and supports vacuum grinding when equipped with vacuum ball mill tanks, ensuring optimal results for sensitive materials.

Working Principle

The mill features four grinding tanks mounted on a rotating turntable. As the turntable spins, the tanks undergo planetary motion, causing the grinding balls and samples to collide at high speed. This intense mechanical impact efficiently reduces samples to fine powders, with particle sizes as small as 0.1μm. Both dry and wet grinding methods are supported, accommodating a wide range of materials.

Applications

• Material Processed: Cinnabar (Pigment)

• Feed Size: 100μm

• Output Granularity: <20μm (meeting customer requirements)

• Grinding Time: 2 hours

• Sample Quantity: 2 kgs per batch

• Equipment Used: XQM-6 model with Nylon pots and zirconia balls

Key Features

1. Precision & Consistency: Gear-driven mechanism ensures stable rotation speed for repeatable results.

2. High Efficiency: Planetary motion delivers high-energy impacts, enabling ultrafine grinding.

3. Multi-Sample Processing: Grind four different materials or sizes in a single run.

4. Adjustable Speed: Frequency converter allows precise speed control with overload protection.

5. Programmable Operation: Offers timed grinding, auto-reverse, and multiple modes (continuous, intermittent) for optimized processing.

6. User-Friendly Design: Low center of gravity, compact structure, quiet operation, and minimal wear.

7. Safety Protection: Safety switch halts operation if the cover is opened during use.

Ideal for pigment processing and advanced material research, the TENCAN 0.4L Planetary Ball Mill combines reliability, precision, and versatility for superior sample preparation.

Technical Parameters

Accessories for Planetary Ball Mill

We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, PTFE and etc.

Available Mill Balls: Agate balls, tungsten carbide balls, alumina balls, zirconia balls
