    Check Valve Milling Turning Lathe With 3 Face Processing

    Ask Lasest Price
    Brand Name : Vicord
    Model Number : YCIC 600 HT
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C,T/T
    Supply Ability : 30 set per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Check Valve Milling Turning Lathe With 3 Face Processing

    Check Valve Milling Turning Lathe With 3 Face Processing


    Vicord CNC Three-Side Lathe is a highly efficient and energy-saving machining solution designed for precision turning of check valves, while also supporting the production of various valves like gate valve, water pumps, fire hydrants, and related fluid control components.


    Advantage
    High Efficiency – Simultaneous three-side machining reduces cycle time and boosts productivity.
    Energy Saving – Optimized motor and drive systems minimize power consumption without sacrificing performance.
    Multi-Purpose Machining – Handles a wide range of workpieces, including gate valves, globe valves, pump housings, and hydrant bodies.
    Precision & Consistency – Advanced CNC control ensures tight tolerances and repeatability for critical sealing surfaces.
    Rigid & Durable – Heavy-duty construction guarantees stability even for hard materials like stainless steel and cast iron.


    Application : Oil & gas, water supply, fire protection, and general valve manufacturing.


    Optional for extra function
    Automation Integration: Robotic loading/unloading for continuous production.
    Fixture : Tailored fixtures for complex valve geometries.


    Details

    ItemUnitYCIC300HTYCIC300HT-GLQYCIC600HT
    Maximum turning diametermmφ460φ460φ840
    X-axis travel(mm)mm170170270
    Z-axis travel(mm)mm395515520
    Coaxiality(mm)mm≤0.1≤0.1≤0.15
    Parallelism(mm)mm≤0.1≤0.1≤0.15
    Surface roughness-6.36.36.3
    Transmission from(Gearshifting)-4speed change4speed change2 speed change
    Spindle speed ranger/min72–25669–15732–47
    Spindle motor model-YE2–132M–6–5.5KWYE2–132M–6–5.5KWYE2–160L–8–7.5KW
    CNC control system (optional)-Nanjing Huaxing—Stepper systemNanjing Huaxing—Servo systemGuangzhou CNC—stepping system
    Feed form (optional)-Stepper motorStepper motorStepper motor
    Actuating motorNm7.7N.m7.7N.m10N.m
    Fully protected overall dimensions (length × width × height)mm2300X1900X17002500X1900X17003000X2300X2500
    Simple protected overall dimensions (length × width × height)mm2100X1900X17002300X1900X17002700X1800X2300
    Machine weightkg180020004500

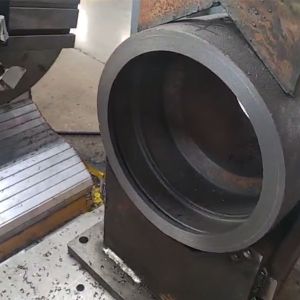

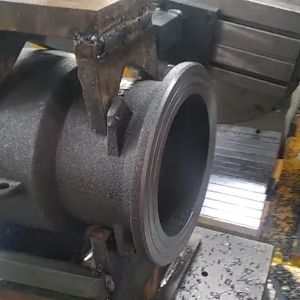

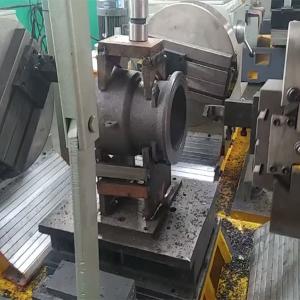

    Processed Products

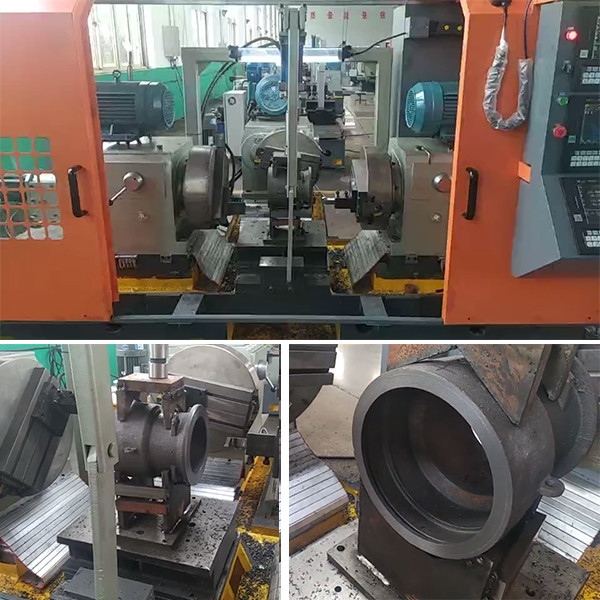

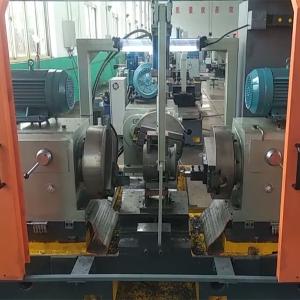

    Machine picture
