Product Overview
The SBMA connector is a new type of blind-mate, low-power RF coaxial connector. As a miniaturized version of the BMA series, it supports the modularization of entire systems by providing compact, reliable connections.
Application Scope:
Designed for blind mating between chassis and cabinet modules,
making it ideal for space-constrained and modular RF environments.
Product Features:
Two-hole flange mount with a floating flange structure. Compatible
with 2# semi-flexible or semi-rigid cables. Offers wide bandwidth,
compact size, and a floating connection mechanism that enhances
alignment and mechanical stability.
Product Specifications
Important Technical Parameters
Electrical property | Temperature range | -55～+125℃ | ||
Characteristic impedance | 50Ω | Frequency range | DC-18GHz | |
Dielectric withstanding voltage | 675V | VSWR | ≤1.06+0.015F(GHz) | |
Insulation resistance | ≥5000MΩ | Insertion loss | ≤0.08√F(GHz)dB | |
Contact resistance | Center conductor | ≤8.0mΩ | Mechanical property | |
Outer conductor | ≤3.0mΩ | Durability | 500times | |
Materials and Surface Treatment
Center conductor | Beryllium bronze, gold | Insulating medium | PTFE |
Outer conductor | Brass, gold plating | Sealing ring | / |

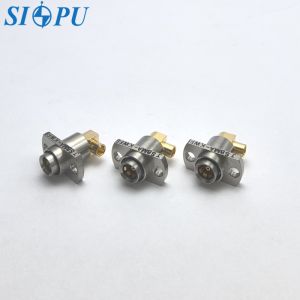

Prodcut Image Gallery
|
