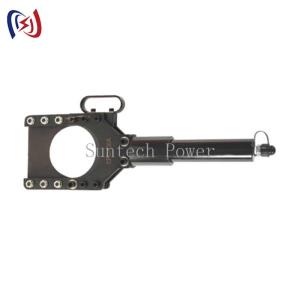

Heavy-Duty Split-Type Hydraulic Cable Cutter for Power Line
Maintenance
Key Features:
Exceptional Cutting Force: Delivers up to 8 tons for severing thick
armored cables
Precision Blades: Tungsten carbide cutting edges for clean cuts
through steel-reinforced cables
360° Swivel Head: Allows cutting from any angle without
repositioning the pump
Technical Specifications:
Cutting Capacity: 50mm to 300mm diameter cables (model dependent)
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Working Principle:
The system utilizes a detachable hand pump connected via
high-pressure hose to the cutting head. When activated, hydraulic
pressure forces the ultra-hardened blades through cable sheathing
and conductors with minimal operator effort. The quick-connect
couplings allow fast tool changes in the field.
Primary Applications:
High-voltage transmission line installation and repair
Substation maintenance and cable replacement
Underground power cable termination
Industrial plant shutdown operations
Offshore wind farm cable systems
Railway electrification projects
Mining operations requiring explosive-proof tools
Competitive Advantages:
✓ Superior accessibility - pump can be positioned separately from
cutting head
✓ Reduced operator fatigue - minimal physical effort required
✓ Versatile configuration - compatible with multiple blade sets
✓ Enhanced safety - remote operation keeps workers clear of
dangerous areas
✓ Low maintenance - sealed hydraulic system with stainless steel
components
Service Package:
1-year comprehensive warranty covering all components
Emergency replacement program for critical projectsCustom blade
sharpening service
24/7 technical support hotline
Manual Cable Wire Cutter Application
The blades are manufactured from high strength special steel, heat
treated to ensure a long service life.
The head can be easily opened to allow the cutting of running
cables.
Hydraulic cutting head complete with quick automatic coupler for
connection to a hydraulic pump with a working pressure of 700 bar
max.
Manual Cable Wire Cutter Specification
| Item number | 21449D | 21449C | 21449 | 21449A |
| Model | CPC-85H | CPC-100B | CPC-130A | CPC-160A |
Crimping force(KN) | 80KN | 80KN | 80KN | 80KN |
| range | armored CU/AL cable Φ85mm max | armored CU/AL cable Φ100mm max | armored CU/AL cable Φ130mm max | armored CU/AL cable Φ160mm max |
| Stroke | 85mm | 100mm | 130mm | 160mm |
| Length | approx.480mm | approx.620mm | approx.650mm | approx.750mm |
| Weight(KG) | approx.N.W6.7KG G.W9.2KG | approx.N.W12KG G.W15KG | approx.N.W13.35KG G.W16.5KG | approx.N.W15.35KG G.W18.5KG |
| Package | wooden case | wooden case | wooden case | wooden case |
