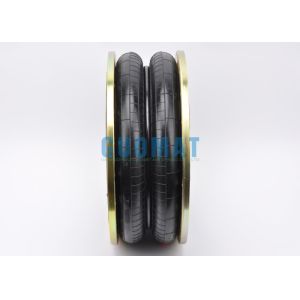

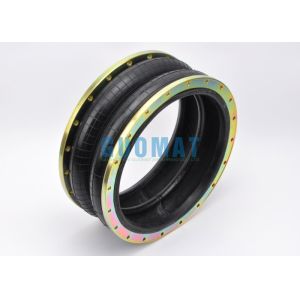

2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring

    Buy cheap 2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring from wholesalers

    Buy cheap 2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring from wholesalers
    • Buy cheap 2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring from wholesalers
    • Buy cheap 2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring from wholesalers
    • Buy cheap 2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring from wholesalers
    • Buy cheap 2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring from wholesalers

    2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2H520217
    Certification : ISO/TS16949:2009
    Price : $129.9-169.9/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring

    2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring


    Product Description

    BrandGUOMAT/Neutral
    NameAir Spring Suspension
    Model No.2H520217
    ColorBlack
    Delivery Time2-8 Working days
    CertificateISO/TS16949:2009
    SizeStandard
    MOQ1PCS

    GUOMAT 2H520217 Industrial Air Spring Technical Data

    The Rubber Bellows Max.Outer Diameter (At 0.7MPa): 550mm

    Natural Height: 217mm

    Min.Height: 90mm

    Max.Height: 249mm

    Stroke: 159mm

    Screw Thread: M10

    Number of Screw Thread: 24pcs

    Center Distance Between Screw Threads: 470mm


    Bearing Capacity (kg)Inflation Pressure0.2Mpa0.3Mpa0.4Mpa0.5Mpa0.6Mpa0.7Mpa0.8MpaVolume at 0.7Mpa(dm3)
    Installation Height
    90(mm)4105618582621028212364144421652115.19
    142(mm)365754997380925211137130201489924.23
    194(mm)32894894662893119953116881338532.19
    217(mm)307046576251785094871109412780
    294(mm)272441365587702085091002411549
    270(mm)23923676501063357717910110580
    Stiffness and frequency at design heightVertical Stiffness(Kg/cm)321418557657772886958
    Natural frequencyHz1.621.501.491.451.431.41137
    cpm97908987868582

    Product Image

    Quality 2H520217 Rubber Air Bads M10 Screw Thread Double Convoluted Air Spring With Flange Ring for sale
