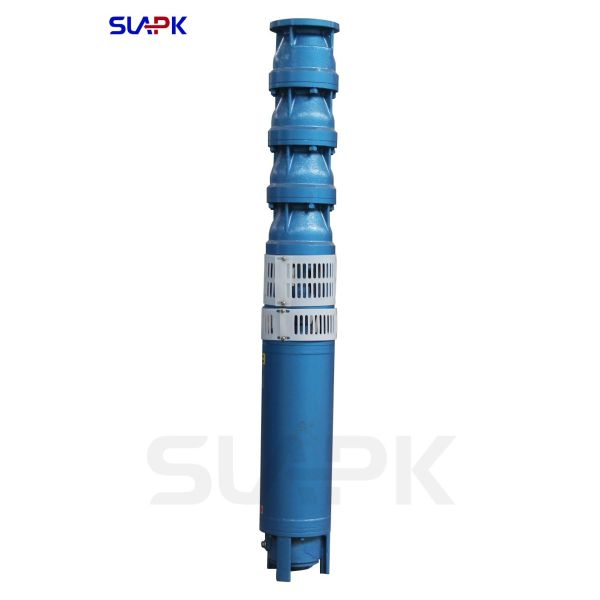

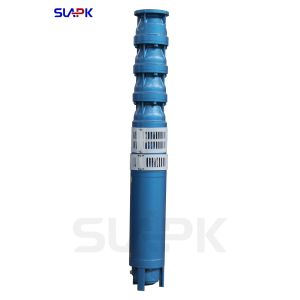

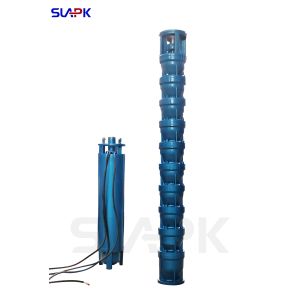

Deep Well Submersible Pump 100m³/h 60m Stainless Steel
Deep well submersible pumps are specifically designed for
high-head, large-flow water supply systems. They are widely used in
agricultural irrigation, urban water supply, industrial cooling,
mine drainage, groundwater extraction, and other fields, especially
suitable for deep well environments with clean water quality and
compatible well diameters.
304/316 stainless steel: Strong corrosion resistance, suitable for
groundwater (containing chloride ions, minerals), weak acid-base
environments.
316L stainless steel: High salinity or seawater intrusion scenarios
(e.g., coastal deep wells,Medical devices and pharmaceutical
equipment).
Core Technology of Integrated Motor and Pump
Dry-type motor sealed chamber:
Dual mechanical seals + oil chamber leakage sensor, ensuring
absolute motor waterproofing.
Axial force balancing system:
Balance holes + thrust bearing, offsetting multi-stage impeller
axial force, protecting motor shaft.
Built-in protection system:
Winding overheating sensor, water shortage power-off protection,
dry-run protection function.
Component | Material/Type | Function |
Multi-stage Impellers | Precision-cast 304 stainless steel | Achieve high head (up to 700m) via multi-stage series design |
Diffuser Casing | 304 stainless steel | Directs water flow, converts kinetic energy → pressure energy |
Mechanical Seal | Silicon carbide/ceramic friction pair | Prevents water ingress into motor cavity (dual-face seal) |
Motor | Water-filled submersible motor (H₂O-cooled) | Stator winding insulation class F (155℃) |
Check Valve | 304 stainless steel ball/butterfly valve | Prevents water backflow impeller impact during pump shutdown |
Strainer | Perforated stainless steel plate | Filters sand/rocks in well (≥0.5mm particles) |
