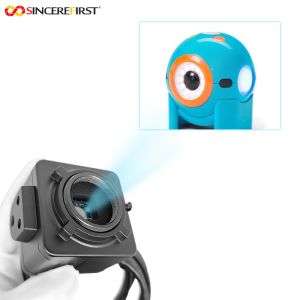

Global Shutter Omnivision OV2312 Image Sensor USB Camera Module
With Shell
Product Description:
This global shutter OmniVision OV2312 image sensor USB camera
module with shell, featuring a 1/2.9-inch optical sensor size that
enhances light capture efficiency for superior imaging
capabilities. The 3μm large pixel size significantly boosts
signal-to-noise ratio and detail rendition in dim environments,
while supporting 1080P@60FPS high-definition video output for
seamless motion capture. It offers dual video format compatibility
with MJPG and YUY2, ensuring flexibility in data processing and
storage. The compact 38mm*38mm module design includes an
industrial-grade casing for durability, and integrates
plug-and-play functionality via USB2.0 interface with native UVC
protocol support for effortless compatibility across platforms.
Global shutter technology effectively eliminates motion blur during
high-speed imaging sequences. Additionally, it accommodates
standard M12 and C/CS interface lenses for easy optical
customization, with options for exclusive lenses and microphone
modules to meet specific integration needs.
Features:
1. Super Low Light Imaging: 3μm large pixel + 1/2.9-inch sensor significantly improves
signal-to-noise ratio in low light conditions, with clearer details
in the dark areas.
2. Motion Capture: Global shutter +1080P@60FPS eliminates high-speed motion blur,
suitable for dynamic scene shooting.
3. Quick and Easy to Use: USB2.0 interface supports UVC protocol plug and play compatible
with Windows/Linux/Android, driverless quick deployment.
4. Flexible Customization: Supports M12/C/CS standard interface lens , enabling flexible
expansion of optical solutions such as wide-angle and telephoto.
5. Robust Protection: The industrial casing provides comprehensive protection and is
suitable for the harsh industrial environment.
Technical Parameters:
| Product Name | Color Sensor USB2.0 Camera Module |
Sensor | OV2312 CMOS Sensor |
Pixel | 2MP |
Shutter Type | Global Shutter |
Focusing Range | 1cm-∞ |
Module Size | 38mm*38mm |
Lens Size | 1/4inch |
Focus Type | FF |
Interface Type | USB |
Brand Name | SINEREFIRST |
Applications:
1. Fingerprint Scanner: It collects the user's fingerprint
biometric features, extracts the pattern details through algorithms
and compares them with the database to complete identity
verification or access control permission control.
2. Self-Checkout counter: Automatically identifies goods and
calculates the amount through scanning codes or RFID technology,
supports multiple payment methods, and synchronously updates
inventory data.
3. Outdoor Security Monitoring: All-weather real-time video
collection and storage, automatically detects anomalies through AI
algorithms and triggers alarms.
4. Video Conferencing Terminal: It enables remote real-time
communication, supports high-definition picture quality
transmission, multi-party meetings, screen sharing and mobile
access, and provides auxiliary functions such as recording and
encryption.
Customized Process:
1. You can provide drawings or samples, as well as request
documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat
product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time
to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need
to modify, mass production.
