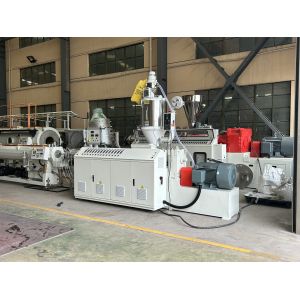

Customized Dimension Water Supply PE Pipe Making Machine
APPLICATION:
1.Good hygienic performance: no heavy metal salt stabilizer is
added during PE pipe processing, the material is non-toxic, no
scaling layer, and no bacteria breeding, which solves the hidden
danger of secondary pollution of urban drinking water.
2.Excellent corrosion resistance: Except for a few strong oxidants,
it can withstand the erosion of a variety of chemical media; no
chemical corrosion.
3. Long service life: PE pipe can be used safely for more than 50
years under rated temperature andpressure .
4.Better impact resistance: PE pipe has good toughness and high
impact resistance, and heavy objects directly pass through the
pipe, which will not cause the pipe to be broken.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?
Every DRTS turnkey PE pipe production line comes with all the
necessary machinery you need to start manufacturing high quality PE
pipe. From the single screw extruders comprised of quality
components to a high speed servo powered puller machines we offer
you everything you need to become a successful pipe manufacturer.
Raw Material Feeding
PE pellets (HDPE/MDPE) are fed into the hopper of the extruder.
A drying system (optional) removes moisture for better extrusion
quality.
Extrusion Process
The material is melted in the single/twin-screw extruder at
controlled temperatures (160°C–220°C).
The molten PE is pushed through a die head to form a continuous
pipe shape.
Vacuum Calibration & Cooling
The pipe passes through a vacuum calibration tank to ensure precise
diameter and roundness.
A water cooling system solidifies the pipe for structural
stability.
Hauling & Cutting
A haul-off unit pulls the pipe at a consistent speed.
An automatic cutting machine slices the pipe into desired lengths
(6m, 12m, or custom sizes).
Printing & Coiling (Optional)
Inkjet printers mark the pipe with specifications (size, pressure
rating, manufacturer details).
For smaller pipes (up to Ø63mm), a coiling machine can wind them
for compact storage.
Quality Inspection & Packaging
Hydrostatic pressure testing ensures leak-proof performance.
Pipes are stacked or packed in bundles for shipment.
Advantages of PE Pipe Extrusion Line
Advanced cooling system to ensure optimal product solidification.
Programmable logic controller (PLC) for automated operation and
real-time monitoring.
Customizable die & mold options for various tube/hose diameters and
wall thicknesses.
Puller & cutter unit for consistent length cutting and winding.
PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling
mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
Our factory
Our exhibition
Our goods shipping
