| Brand Name : | RVYUAN |
| Model Number : | AIW220 |
| Certification : | IEC/NEMA/JIS/RoHS/ISO |
| Price : | Negotiation |
| Payment Terms : | T/T, L/C |
| Supply Ability : | Satisfy your demand |
| Delivery Time : | 7 workding days |

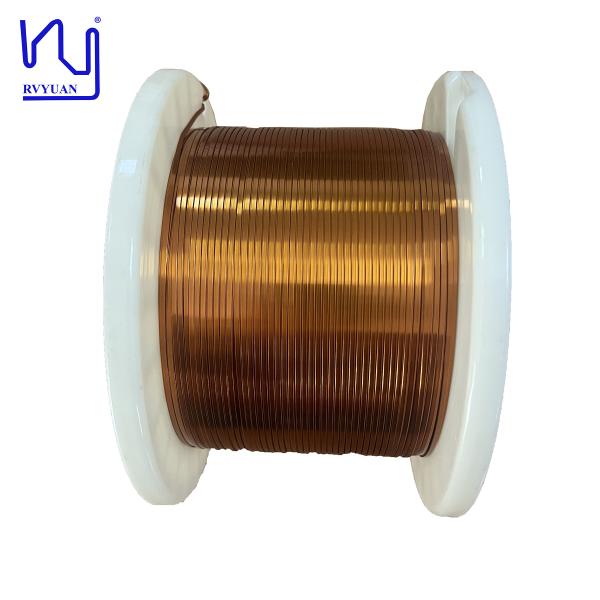

Solderable Self Adhesive 0.5mmx2.0mm Enameled Flat Copper Wire
Choose our custom enameled rectangular copper wire for your next project and experience superior quality and performance. Committed to excellence and customer satisfaction, we are here to support you in achieving your goals in motor and inductor applications.
Item | Conductor dimension
| Unilateral adhesive thickness | Unilateral insulation thickness | Overall dimension
| Dielectric breakdown voltage
| Conductor resistance | ||||
| Thickness | Width | Thickness | Width | Thickness | Width | |||||
| Unit | mm | mm | mm | mm | mm | mm | mm | kv | Ω/km 20℃ | |
SPEC | AVE | 0.500 | 2.000 | / | 0.025 | 0.025 | / | / | ||
Max | 0.509 | 2.060 | / | 0.040 | 0.040 | 0.0560 | 2.110 | 19.490 | ||
Min | 0.491 | 1.940 | 0.002 | 0.010 | 0.010 | / | / | 0.700 | ||
No. 1 | 0.495 | 2.001 | 0.003 | 0.023 | 0.022 | 0.548 | 2.052 | 2.310 |
18.420 | |
| No. 2 | 2.690 | |||||||||
| No. 3 | 2.520 | |||||||||
| No. 4 | 3.101 | |||||||||
| No. 5 | 3.454 | |||||||||
| No. 6 | / | |||||||||
| No. 7 | / | |||||||||
| No. 8 | / | |||||||||
| No. 9 | ||||||||||
| No. 10 | / | |||||||||
Avg | 0.495 | 2.001 | 0.003 | 0.023 | 0.022 | 0.548 | 2.052 | 2.815 | ||
No. of reading | 1 | 1 | 1 | 1 | 5 | |||||
Min. reading | 0.495 | 2.001 | 0.003 | 0.023 | 0.022 | 0.548 | 2.052 | 2.310 | ||
Max. reading | 0.495 | 2.001 | 0.003 | 0.023 | 0.022 | 0.548 | 2.052 | 3.454 | ||
Range | 0.000 | 0.000 | 0.000 | 0.000 | 1.144 | |||||
Result | OK | OK | OK | OK | OK | OK | OK | OK | OK | |

|
