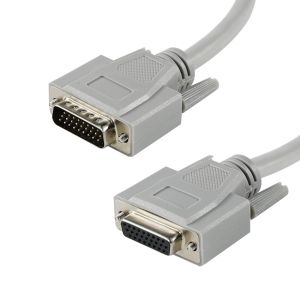

DB26 Male to Female Parallel Extension Cable with 26-Pin D-sub
Connector for Industrial Equipment and CNC Signal Transmission
Product Description
Technical Specifications
| Parameter | Description |
| Product Type | DB26 Male to Female Parallel Extension Cable |
| Connector A | DB26 Male (26-pin D-sub) |
| Connector B | DB26 Female (26-pin D-sub) |
| Pin Configuration | 1:1 Straight-through Wiring |
| Cable Length | 3FT/4FT/Custom Available |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| Shielding | Aluminum Foil + Braid |
| Operating Voltage | ≤ 30V DC |
| Temperature Range | -20°C ~ +60°C |
| Color | Black / Beige / Custom |
| Connector Shell | Nickel-plated or Custom OEM |
Product Introduction
This DB26 Male to Female Parallel Extension Cable is designed for extending existing DB26 signal connections in
industrial control systems, CNC automation equipment, or signal
testing environments. Built with high-purity copper conductors and
full 26-pin mapping, the cable supports stable and
interference-free data transmission.
Key Specs
DB26 1:1 Extension Wiring – Maintains original signal layout
Full 26-Pin D-sub Compatibility – Supports high-density parallel connections
Durable Molded Shell – Offers strain relief and long lifespan
Double Shielding – Reduces EMI/RFI interference
Thumbscrews on Both Ends – Ensures stable and secure mating
Color & Size Options
Color Options: Black / Beige / OEM Custom
Cable Lengths: 1m / 1.5m / 3m / 5m / Others on request
Connector Housing: ABS Molded / Metal Shell Optional
Packaging:PE Bag / Anti-static Bag / Custom Retail Box
Product Features
Extend existing DB26 connections with minimal signal loss
Molded connector with thumbscrews for secure installation
Ideal for industrial, control cabinet, and test bench setups
EMI-shielded cable ensures high signal integrity
Custom lengths and pinouts available upon request
Compatible Devices
This cable is intended for signal transmission only. Ensure DB26
compatibility with your equipment.
Safety Information
Not designed for power transmission or high-voltage use
Avoid sharp bends or mechanical stress during routing
Store in dry and static-free environment
Clean connectors before installation to ensure contact reliability
Custom pin mapping available — please provide your diagram if
needed
FAQ
Frequently Asked Questions (FAQ)
Q1. Are you factory or trade company?
A: We are factory of more than 16 years export experience.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. Samples ?
A: 2-5 pieces free samples are available, freight on you. Delivery
time usually is 2-3 days. Customized samples will take 5-10 days.
Q5. What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods
within 10-15 working days, for more QTY order, let's confirm when
you place official order.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7. How to ship out the cargo?
A: At your request, by sea, by express, all are available.
