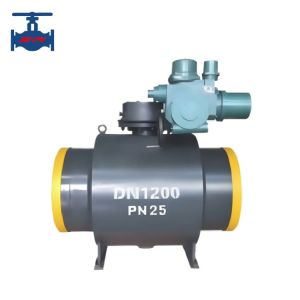

Highlight: Electric welded ball valve
Product introduction:
With superior performance and reliable quality, fully welded ball
valves have become core equipment for underground
projects in urban gas transmission and distribution networks,
central heating systems, natural gas long-distance pipelines,
and pressure regulating stations. After 30 years of technical
expertise, continuous R&D innovation, and process optimization,
product performance has been continuously breakthrough, gaining
wide trust and high recognition in energy infrastructure
construction across more than 30 countries globally. The valve body
adopts an integrated full-welding process, fundamentally
eliminating potential leakage hazards from traditional connection
methods and achieving leapfrog upgrades in both internal
and external sealing performance of the valve. The valve body is
carefully selected from high-quality steel pipes or A105
forgings, and through precision forging and strict testing, it
ensures that the valve body is free of defects such as sand holes
and air pockets, completely eliminating leakage risks. This design
not only significantly reduces sealing maintenance costs
in engineering construction but also greatly shortens the
construction period by minimizing hidden danger inspections in
installation and debugging, providing efficient and safe solutions
for energy transmission projects.
Product technical parameters:
Nominal Diameter DN (mm) | 15~500 |
Nominal Pressure PN (MPa) | 1.6 |
Test Pressure (MPa) | Strength (water) | 2.4 |
Enclose (Water) | 1.76 |
Main Components | Body | WCB/CF8/CF8M |
Valve ball | Stainless steel/Carbon steel |
Seat | PTFE |
Packing | Soft graphite |
Shaft | 2Cr13 |
Handle | Ductile iron |
Working temperature | ≤150℃ |
Medium suitable | Water, oil, steam |
Product features:
1. Fully Welded Body: Integrally welded to eliminate external
leakage, with a compact structure for easy installation.
2. Low Torque Operation: Equipped with PTFE self-lubricating
bushings to minimize friction, ensuring effortless opening
and closing.
3. Double Block and Bleed (DBB): Allows discharge of media from the
valve body when closed under pressure, ensuring
safety.
4. Dual Piston Sealing: Both valve seats are pressure-actuated for
sealing; if the upstream seat leaks, the downstream
seat automatically engages to stop leakage.
5. Reliable Sealing: Floating seat + spring preload, combined with
particle-resistant composite seals, achieves zero
leakage and adapts to various working conditions.
6. Emergency Sealing System: - Inject sealant to repair damaged seals under pressure. - Clean and lubricate sealing surfaces when
handling particulate media. - Bottom check design prevents leakage
from the valve base.
