| Brand Name : | RUYA |
| Model Number : | 2DT50-FZ |
| Certification : | ISO 9001 |
| Price : | negotiable |
| Payment Terms : | T/T |
| Supply Ability : | ≤3 sets, 3 months |
| Delivery Time : | 3-4 months |

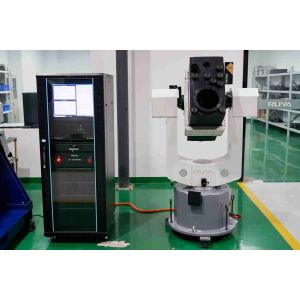

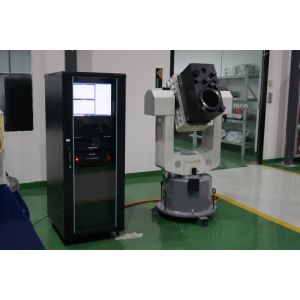

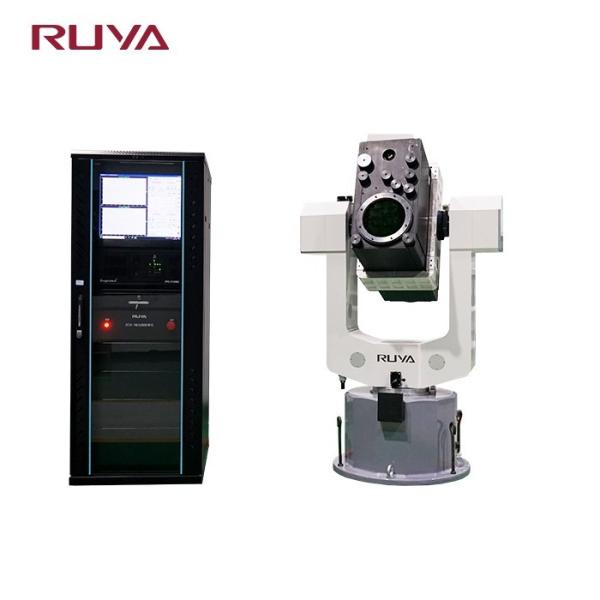

2DT50-FZ UAV Prevention Turntable System Tracking Turntable
Product Description
UAV prevention turntable has two degrees of freedom of movement in the azimuth axis (X) and pitch axis (Y). It is a U-T type two-dimensional precision testing equipment. It is mainly used for tracking and positioning of UAV prevention systems, providing location coordinates for the entire system.
Product Parameters
Specification | ||
1 | Load Weight | 150Kg |
2 | Rotary Range | inner frame: ±350° |
outer frame: ±90° | ||
3 | Rate Range Of Dual-Axis | 0°/s~100°/s |
4 | Maximum Angular Acceleration Of Dual-Axis | 50°/s^2 |
5 | Tracking Positioning Accuracy Of Dual-Axis | ≤±10″ |
6 | Positioning Repeatability Of Dual-Axis | ≤±5″ |
7 | Intersection Of Dual-Axis | Ф0.5mm diameter ball |
8 | Inclination Rotary Accuracy Of Dual-Axis | ≤±3″ |
9 | Perpendicularity Of Dual-Axis | ≤±2″ |
10 | Rate Accuracy | ω≤1°/s , 2×10-3 (1° average) |
1°/s≤ω<10°/s , 2×10-4 (10° average) | ||
ω≥10°/s , 2×10-5 (360° average) | ||


|
|
