304 Hot Rolled Stainless Steel Plate For Structural Fabrication Needs Corrosion-Resistant

Ask Lasest Price
Brand Name :	TISCO BAOSTEEL
Model Number :	304 / 1.4301
Certification :	ISO
Price :	1800 - 3200 USD/Ton
Payment Terms :	T/T, Western Union
Supply Ability :	20Ton per week
Delivery Time :	5 - 12 days based on the quantity

Add to Cart

Product Details
Company Profile

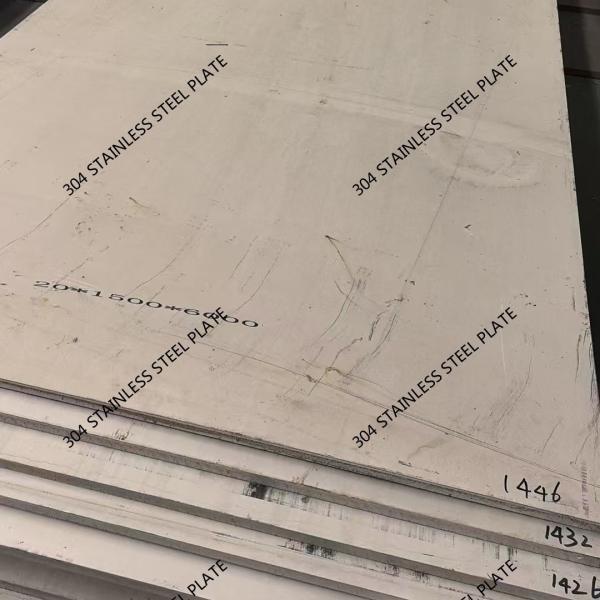

304 Hot Rolled Stainless Steel Plate For Structural Fabrication Needs Corrosion-Resistant

High Quality 304 Hot Rolled Stainless Steel Plate Corrosion Resistant, Structural & Fabrication Use

Products Specification

Products Name	304 Stainless Steel Plate
Main Grades	Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316TI, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L,630,631,254SMO,253MA,2205,2507.etc
Thickness	3.0 - 80.0mm
Width	1250mm,1500mm ,1800mm,2000mm, or custom other size as request
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT
Type of Material	Laser Cutting
Form	Plate / coil
Test Certificate	Yes.
Finish	NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA.
Brand	TISCO, LISCO,BAOSTEEL , POSCO, JISCO

304 Hot Rolled Stainless Steel Plate Product Information

1. Product Highlights

Our 304 hot rolled stainless steel sheets are the result of advanced manufacturing techniques, combining the inherent benefits of 304 stainless steel with the unique characteristics of the hot rolling process. These sheets offer an unbeatable combination of strength, versatility, and cost - effectiveness, making them a top choice for a multitude of projects.

2. Technical Details

Material Composition: Comprising 18 - 20% chromium and 8 - 10.5% nickel, along with trace amounts of manganese, silicon, and carbon, our 304 hot rolled sheets possess exceptional resistance to oxidation and chemical corrosion. The precise alloy composition ensures reliable performance in a wide range of environments.

Mechanical Properties:

Tensile Strength: Exceeds 515 MPa, providing robust load - bearing capacity.

Yield Strength: Reaches at least 205 MPa, ensuring structural integrity under stress.

Elongation: Offers an elongation percentage of 40% or more, enabling excellent formability during fabrication.

Hardness: With a Rockwell hardness of approximately B80, these sheets strike the perfect balance between workability and durability.

3. Available Dimensions

Thickness: Ranging from 2.0mm to 50mm, providing options for both lightweight and heavy - duty applications.

Width: Standard widths include 1000mm, 1219mm, 1500mm, and 2000mm, with custom widths available upon request.

Length: Offered in lengths of 2000mm, 4000mm, 6000mm, and can be customized up to 12000mm to meet specific project requirements.

4. Quality Standards

Our 304 hot rolled stainless steel sheets adhere to strict quality standards. They are compliant with ISO 9001:2015 quality management system requirements, ensuring consistent quality across all production batches. Additionally, they meet or exceed the specifications of major international standards such as EN 10088 - 2 in Europe, which defines technical delivery conditions for flat products made of stainless and acid - resistant steels in rolled state. This commitment to quality guarantees that our products perform reliably in even the most demanding applications.

5. Packaging Solution

Single Sheet Protection: Each sheet is carefully covered with anti - static and anti - scratch protective film, safeguarding the surface from any potential damage during transit.

Bundling and Securing: Multiple sheets are grouped together and tightly bound with high - strength steel bands. The bundles are then wrapped with a thick layer of weather - resistant kraft paper to shield them from moisture and dust. For extra stability during long - distance shipping, the bundles are mounted on sturdy wooden pallets.

6. Cutting and Fabrication Services

Custom Cutting: Leveraging state - of - the - art laser cutting technology, we can cut the sheets into any desired shape and size with an accuracy of up to ±0.1mm. Whether it's a simple rectangle or a complex geometric pattern, we can bring your design to life.

Edge Processing: In addition to cutting, we offer edge processing services such as deburring, beveling, and rounding. This ensures that the edges of the sheets are smooth, safe, and ready for immediate use in your project.

7. Application Scenarios

Marine Engineering: In the marine environment, where saltwater corrosion is a major concern, our 304 hot rolled sheets are used for constructing ship hulls, deck structures, and offshore platforms. Their excellent corrosion resistance helps maintain the integrity of these structures over long periods.

Energy Sector: Applied in power plants for the construction of heat exchangers, boiler components, and storage tanks. The high - temperature resistance and durability of our sheets make them suitable for withstanding the harsh operating conditions within energy facilities.

Furniture and Interior Design: Used to create stylish and durable furniture pieces, decorative panels, and architectural accents. The natural metallic luster of the hot - rolled surface adds a touch of modern elegance to any interior space.

Agricultural Equipment: Ideal for manufacturing agricultural machinery parts, such as tractor frames, irrigation system components, and storage bins. The sheets' resistance to rust and wear ensures the longevity of agricultural equipment.
