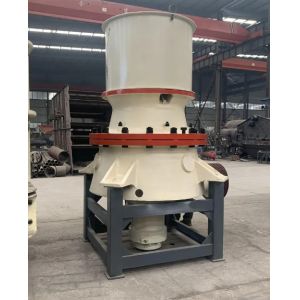

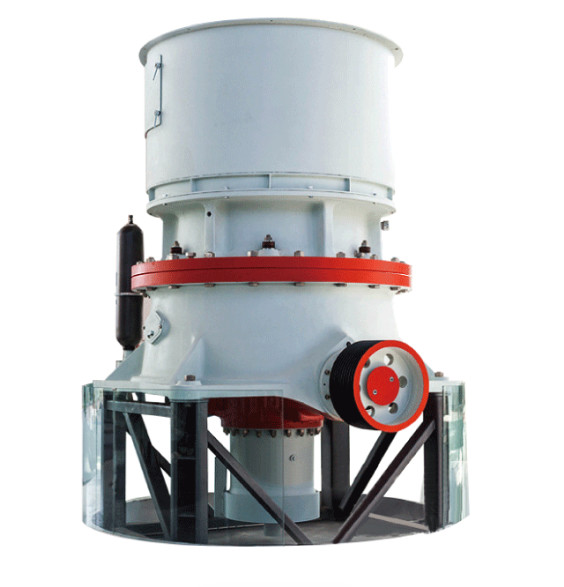

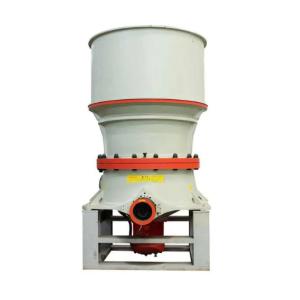

    Large Single Cylinder Cone Crusher High Yield Crushing Capacity

    Ask Lasest Price
    Brand Name : ZTIC
    Model Number : Stone Crusher Machine
    Certification : IOS/CE
    Price : negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 5000 Set/Sets per Year
    • Product Details
    • Company Profile

    Large Single Cylinder Cone Crusher High Yield Crushing Capacity

    High Yield Crushing Capacity Large Single Cylinder Cone Crusher


    Overview

    • Production Capacity: ≤500T/H
    • Feed Size: ≤380mm
    • Applicable Materials: Iron ore, copper ore, quartz, granite, basalt, diabase
    • Application Fields: Metallurgical industry, construction industry, road construction industry, chemical industry, and phosphate industry.
    Product Introduction Of Stone Crusher Machine

    The DP single-cylinder cone crusher is a crushing equipment used for mineral fine crushing operations. It is respectively used for coarse crushing, medium crushing, and fine crushing. It can crush materials to the required particle size range and meet customers' production capacity requirements.
    Product Advantages Of Stone Crusher Machine
    • Uniform particle shape and high output
    • Strong crushing capacity
    • Continuous and stable operation, with automatic overload protection against iron impurities
    • Rotating feeding device ensures even wear of liners
    Working Principle Of Stone Crusher Machine
    When the cone crusher is working, the rotation of the motor is transmitted through the pulley or coupling to the drive shaft of the cone crusher. The cone part of the crusher swings around a fixed point under the force of the eccentric sleeve. This causes the crushing wall of the cone crusher to periodically approach and move away from the surface of the crushing wall fixed on the adjusting sleeve, continuously impacting, compressing and bending the ore in the crushing chamber to achieve crushing. The motor drives the eccentric sleeve through bevel gears, making the crushing cone swing. The crushing cone periodically approaches and moves away from the fixed cone, completing the crushing and discharge process.

    Product Parameters

    ModelDP100SDP100DP430SDP430DP440SDP440DP660SDP660DP870
    Weight (kg)735057001200092001930014300357002680049800
    Maximum maintenance weight
    (kg)
    28002000520030008200480016800860013200
    Motor power
    (kW)
    9090132132220220315315500

    Model lCavity typeMaximum feeding size
    (mm)
    Discharge port (CSS) corresponding output (t/h)
    6mm8mm10mm13mm16mm19mm22mm25mm32mm38mm44mm51mm57mm64mm71mm

    DP100
    M10555-6060-8565-9570-10075-90
    MF8545-5050-7055-8060-8565-9065-80
    EF3240-5540-6045-7055-7560-7565



    DP430
    EC18569-10875-15080-16186-17191-182104-208/115-208
    C14566-13171-14276-15281-16286-17398-197109-150
    MC1155762-14067-15172-16277-17382-18493-145
    M9064-8469-13175-14280-15286-16291-154104
    MF756165-10670-11576-12481-12687-11492
    F5048-7851-8354--8859-9663-10368-10572-9577
    EF3570-90 80% of them are smaller than 5mm-5.6mm



    DP440
    EC215114-200122-276131-294139-313159-357175-395192-384
    C175101109-218117-292125-312133-332151-378167-335183-229
    MC14097-122105-262113-282120-301128-320146-328161-242
    M110117-187126-278136-298145-318154-339175-281194
    MF85114124-227134-245144-263153-281163-299186-248
    F7090-13596-176104-191112-206120-221129-236137-251156-208
    EF38100-125 80% of them are smaller than 6mm-7.5mm




    DP660
    EC270177190-338203-436216-464246-547272-605298-662328-511
    CX235174-194187-374200-488212-519242-592268-654293-521323-359
    C215171-190184-367196-480209-510238-582263-643288-512317-353
    MC175162-253174-426186-455198-484226-552249-499273-364
    M135197-295211-440226-470240-500274-502302-403
    MF115192207-369222-396237-423252-450287-451318-363
    F90195-304210-328225-352241-376256-400292-401323
    EF65211-293227-316244-298261-290




    DP870
    EC300448-588477-849544-968601-1070658-1172725-1291782-1393849-1512906-1331
    C240406433-636461-893525-1018581-1125636-1232700-1357756-1464820-1461876-1286
    MC195380-440406-723432-837492-954544-1055596-1155657-1272708-1373769-1370821-1206
    M155400-563428-786455-836519-953573-1054628-1154692-1271746-1372810-1248865-1098
    MF100379-424407-716434-765462-814527-928852-942638-789702
    F90357-395385-656414-704442-752470-800535-912592-857649-718
    EF80280-405304-517328-558352-598376-639400-680455-775503-758551-669

    Product Display



    LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.


    Q&A


    Q: Why we believe in luoyang zhongtai industries co., ltd:
    A: 1. More than 30 years experience.
    2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
    3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

    Q:Delivery time?
    A: Parts lead time 1-2months, machines 2-3months.

    Q:Payment terms?
    A: Accept payment type: T/T, L/C, Western union,Cash.
    30% deposit when signed contract. Full payment paid before shipping
