    0.1% O₂ Concentration Resolution And 0.2L/min Response Time Ultrasonic Oxygen Sensor KGD-GAS-426 With High Resolution

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : KGD-GAS-426
    Certification : CE
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week negotiable
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    0.1% O₂ Concentration Resolution And 0.2L/min Response Time Ultrasonic Oxygen Sensor KGD-GAS-426 With High Resolution

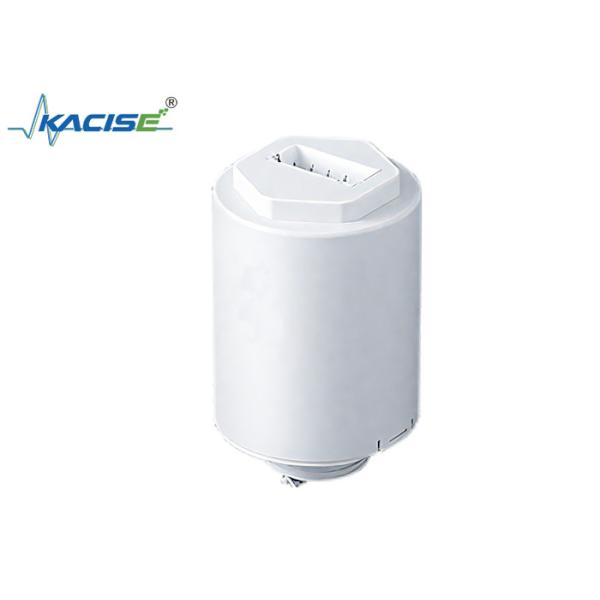

    Ultrasonic Oxygen Sensor KGD - GAS - 426


    Product Introduction


    The KGD - GAS - 426 ultrasonic oxygen sensor is an economical and practical sensor used to measure the oxygen concentration in binary gases. This product adopts ultrasonic sensing technology, and its structure and interface can seamlessly replace the oxygen battery sensor. It features a long service life, good stability, and complies with environmental protection regulations.


    Product Features

    • Ultrasonic technology, maintenance - free and drift - free
    • Full - range temperature and humidity compensation
    • Service life of over 10 years
    • Meets environmental protection requirements, seamless replacement for oxygen batteries

    Technical Parameters

    ItemDetails
    Detection PrincipleUltrasonic measurement principle
    Detection RangeO₂ concentration: 20.5% - 100%
    Detection AccuracyO₂ concentration: ±3%FS @(5 - 45)°C
    ResolutionO₂ concentration: 0.1%
    Response TimeO₂ concentration: ≤5.0s (T90, 0.5L/min) ≤15s (T90, 0.2L/min)
    Operating Conditions0 °C - 50 °C, 0 - 95%RH (non - condensing)
    Storage Conditions-20 °C - 50 °C, 0 - 95%RH (non - condensing)
    Operating VoltageDC 5V
    Operating CurrentAverage operating current ≤40mA
    Analog Output200mV - 2300mV (corresponding to 1 - 100% oxygen concentration)
    Product DimensionsW30*L46 (mm)

    Quality 0.1% O₂ Concentration Resolution And 0.2L/min Response Time Ultrasonic Oxygen Sensor KGD-GAS-426 With High Resolution for sale
