High Efficiency Parcel Sorting System Automation Equipment Swivel
Wheel Sorter Conveyor
The Realkey Swivel Wheel Sorting Machine, also called the Divert
Wheel or Rotating Wheel Sorter, is a robust solution for sorting
parcels and cartons in conveyor systems. Built with an electric
drum (wheel), a steering mechanism, a control unit, and a solid
frame, it propels items via drum rotation. Servo motors and
steering modules adjust the drum’s angle to guide items left or
right. Handling cartons up to 50kg, waterproof bags, woven bags,
and flat-bottomed irregular packages, it sorts at 2m/s, processing
6,000 items per hour. Ideal for postal services, express delivery,
e-commerce logistics, and distribution hubs, it delivers top
performance. For more, see below or contact Realkey’s customer
service team.
Technical Parameters
| Model | SWS-10M | SWS-12H |
| Sorted Items | Medium to large parcels, woven bags, flexible packages, etc. |
| Weight Range | 0.2kg≤M≤50kg | 0.2kg≤M≤50kg |
| Sorting Capacity | 4000 pieces per hour | 6000 pieces per hour |
| Parcel Size Range | MAX:1000*1000*700mm |
| (Example for a 1-meter wide device) | MIN:150*150*30mm |
| Sorting Success Rate | 99.99% |
| Sorting Modes | Single-sided sorting / Double-sided sorting |
| Electric Drum Size | Drum length 85mm * Drum diameter 70mm |
| Conveying Speed | 1-1.5m/s | 1.2-2m/s |
| Number of Swing Mechanisms | Not less than 2 | Not less than 5 |
| Parcel Spacing | 800mm | 400mm |
| Operating Noise | ≤72dB(A) |
Product Features
Versatility

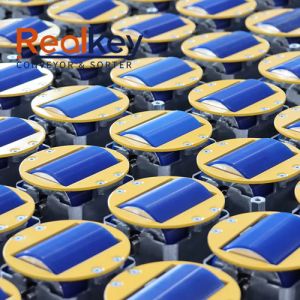

Featuring a flat surface of rubber-coated electric rollers, the
sorter provides broad, adaptable contact, ensuring smooth sorting
of diverse parcels like clothing, books, cartons, and soft packages
with precision.
Efficient Sorting
Driven by electric rollers, it offers strong load capacity, low
noise, and fast operation. By streamlining complex mechanisms, it
enhances efficiency, sorting up to 6,000 items per hour, perfect
for high-volume logistics.
Compact Structure
Its simple, stable design minimizes failures. Articulated bearings
link steering components, enabling precise angle tweaks. Servo
motors ensure rapid steering, with independent modules using
minimal sorting signals for efficiency.
Quick Installation and Removal
With a standardized modular design, the sorter’s single-group swing
wheel and single-row modules detach easily from transmission parts,
enabling fast setup and straightforward maintenance.
Application
The swivel wheel sorter optimizes sorting for apparel, books,
boxes, and soft packages, ensuring seamless operations. It’s widely
used in express delivery, logistics centers, and warehouses,
sorting parcels quickly and accurately. In e-commerce, it speeds up
order fulfillment, strengthening logistics workflows. In
manufacturing, it organizes materials and components, serving
industries like healthcare, food processing, and renewable energy
with effective sorting.
Advantages
Advanced Technology
Realkey’s sorter integrates a sophisticated control system with
sensors to optimize start-stop functions based on package arrival,
saving energy. Servo-driven sorting offers quick, precise angle
control, supporting uni-directional, bi-directional, and
multi-angle modes for varied applications.
Precision Manufacturing
Crafted with CNC-machined components and careful assembly, it
ensures high precision, longevity, quiet performance, and low
maintenance needs, delivering consistent results.
Safety and Stability
Engineered for durability, it meets top industry standards with
comprehensive safety features, ensuring operator confidence and
reliable performance.
Reliability
With 18 years of logistics automation expertise, Realkey provides
robust, trusted sorting solutions, solidifying our reputation as a
dependable industry partner.
