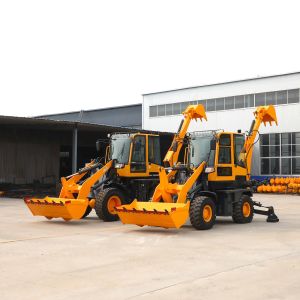

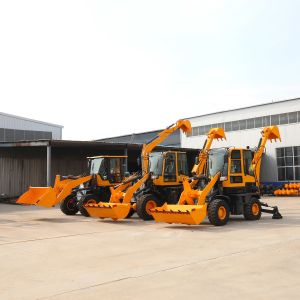

    Excavating and Loading "Two Busy" Multi-Functional Construction Mechanical Vehicle

    Ask Lasest Price
    Brand Name : GNG
    Model Number : SZ150
    Certification : CE
    Price : USD 20422.00
    Payment Terms : T/T
    Supply Ability : 100sets/month
    Delivery Time : 30 ~45days
    • Product Details
    • Company Profile

    Excavating and Loading "Two Busy" Multi-Functional Construction Mechanical Vehicle

    Min. Order Quantity: 20 Set/Sets
    Supply Ability: 500 Set/Sets per Month
    Port: Qingdao
    Payment Terms: T/T
    Condition: New
    Place of Origin: Shandong, China (Mainland)
    Brand Name: Weihao
    After-sales Service Provided: No overseas service provided
    Delivery Detail: 30-45days

    Specifications

    Item Specifications
    General Machine PerformanceModel No.SZ150
    Machine Size (L*W*H)6500*1850*2700mm
    Overall Weight5000kg
    Wheel Base2240mm
    Wheel Tread1480mm
    Min. Turning Radius4000mm
    Min. Ground Clearance250mm
    Max. Driving Speed30km/h
    Max. Climbing Capacity30°
    Engine PerformanceStandard EngineKolher 1903(EPA4)
    Engine Type4 Cylinder/Direct injection
    Rated Power41kw
    Rated Speed2200R/min
    Fuel Tank Capacity63L
    Loading PerformanceLoading Bucket Capacity0.8m³
    Rated Loading1500kg
    Bucket Width1800mm
    Max. Unloading Height3200mm
    Max. Unloading Distance800mm
    Max. Lifting Height4300mm
    Breakout Lifting Force(KN)42Kn
    Shovel Action Time6.5s
    Digging PerformanceBackhoe Bucket Capacity0.1m³
    Bucket Width55mm
    Max. Digging Depth2000mm
    Max. Digging Height4300mm
    Max. Digging Radius3700mm
    Max. Unloading Height3100mm
    Bucket Slewing Angle280°
    Bucket Digging Force28Kn
    Transmission SystemDriving Type4*4 Four-Wheel Drive
    GearboxPower Shift
    Gear ShiftFront 2/Rear 2
    Torque Converter265, High and Low Speed
    Steering SystemSteering TypeArticulated Full Hydraulic Steering
    Steering Angle±33°
    Axles & TyresAxle TypeWheel Bridge
    Standard Tyre(Front/Rear)20.5-16
    Tyre Pressure(Front/Rear)250-300Kpa
    Brake SystemTraveling BrakeGas cap oil power braking system
    Parking BrakeAir Brake
    Braking Distance3100mm
    Hydraulic SystemVariable Speed TypeHydraulic Shift
    System Working Pressure28Mpa
    Hydraulic Fuel Tank Capacity63L
