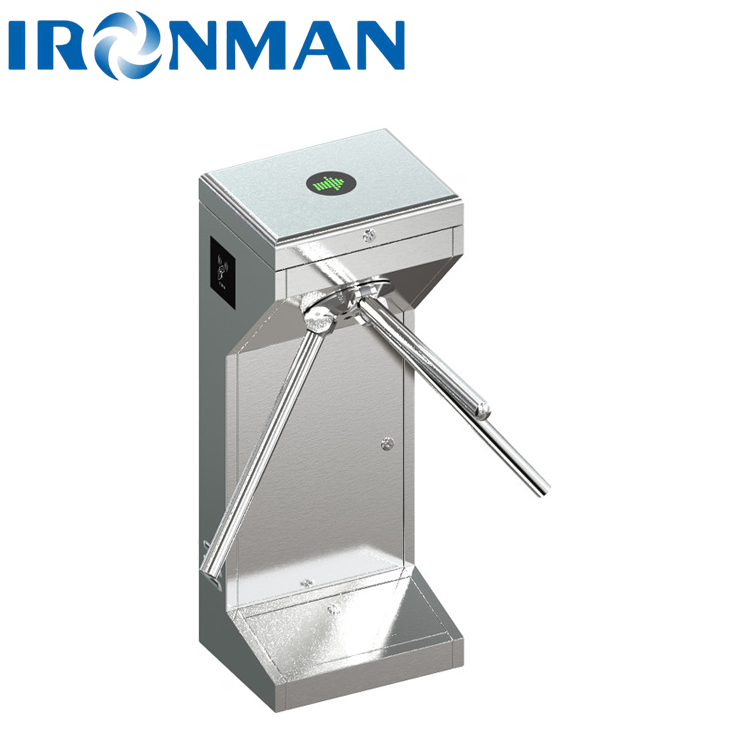

One Direction Access Control Tripod Turnstile Barrier Gate For
Toilet Train Station
Product Overview
The Tripod Barrier Gate is a premium access control solution
designed to enhance security and manage pedestrian flow efficiently
in various environments. Crafted with high-quality stainless steel,
this gate combines robust construction with sleek design, offering
reliable performance and aesthetic appeal.
Key Features
1.Sturdy Structure
Constructed with high-quality stainless steel, the turnstile offers
exceptional durability and resistance to corrosion, ensuring
long-term reliable operation even in high-traffic areas.
2.Intelligent Access Control
- Supports multiple authentication methods: RFID cards, QR codes,
biometric recognition (optional), and mobile credentials.
- Equipped with advanced sensors to detect unauthorized access,
tailgating, or reverse entry, triggering audible alarms and
real-time alerts.
3.Smooth and Efficient Passage
- Three rotating arms (tripod design) allow one-person-per-passage,
maintaining orderly traffic flow while preventing unauthorized
entry.
- Fast response speed: Gates unlock and reset within 0.3 seconds,
ensuring high throughput during peak hours.
specification
| Dimensions | length 420* width 330* height 980mm |
| Material | 304 stainless steel material |
| Power Supply Voltage | AC220V±10% |
| Rrelative Humidity | relative humidity ≤95% |
| Arm Length | 500mm |
| Channel width | 550mm |
| Traffic Speed | ≤35 people/minute |
| Passing Direction | two-way (optional) |
| Working Environment | indoor, outdoor |
| Functional Parameters | Alarm Function | It has an audible and visual alarm function. |
| Anti - interference | It can effectively prevent the gate from malfunctioning due to
external factors such as electromagnetic interference. |
| Passage Mode Setting | One - way passage, two - way passage, free passage , etc. can be
set through the buttons on the main control board. |
| Anti - tailgating | It prevents an excessive number of unauthorized people from passing
through at one time. |
| Anti - pinching Function | When the gate is closing, it will stop closing upon detecting an
anti - pinching signal. |
| Automatic Reset | After the gate is opened, if the user fails to pass within the
specified time, the system will automatically cancel the user’s
current passage permission. The default time is 10 seconds, and it
can be set through a switch. |
| Access Control | Multiple biometric devices can be connected to the external ports. |
| Power - off Gate Opening | The gate will open when the power is off. |
| Fault Detection | The control board supports fault type detection to assist in
analyzing the cause of the fault and handling abnormal faults. |
| Passage Indication | There are passage status indicator lights, and an alarm function
can be set for exceeding the stay time in the passage. |
Cases
About IRONMAN
IRONMAN Intelligent, established in 2014 and is located in
Shenzhen,China. We are a diversified national high-tech enterprise
focusing on high-end pedestrian turnstile equipment which expertise
in turnstile product research, development, manufacturing, sales
and service.IRONMAN Intelligent has launched series of pedestrian
turnstile products and intelligent security solutions with the
including our patented speed gates, flap barrier gates, swing
barrier gates, sliding gates, tripod turnstiles, and customs border
inspection specified AB gate, kindergarten specified turnstile
gates, etc. Our projects cover many fields such as government
agencies, public transportation, commercial centers, community
properties, municipal schools, smart hospitals, smart scenic spots,
enterprises and so on.
FAQ
1.What is the warranty for the machine?
Within 1 year
2.Can machines be used outside?
With waterproof function
3.How to ensure after-sales service?
You can find our sales staff at any time. If you encounter any
technical problems,welcome to contact with us to have a face timeto
solve it.
4. How about your package?
Exported product: Wooden case package of Export exempted from
inspection plus pearl wool and plastic wrap Domestic: Bubble wrap
plus carton or pearl wool plus wooden packaging.
5.How to ship?
Sea,Air,Land
