Dual Stream Shallow Compression + Deep Compression Av Access Best 4k Kvm Over Ip Extender

Add to Cart

1. Product overview

Dual stream series av access best 4k kvm over ip extender is a FPGA-based architecture, lossless quality,

sub-frame delay distributed seat all-in-one machine. EXQ.S codec technology with extreme image quality

and standard H.264/H.265 codec technology are embedded with their own privacy protocol to ensure that

signals are protected during signal transmission. Converged communication, cross-region optical fiber transmission,

multi-level interconnection, cross-switch, cross-segment can achieve stable signal transmission.

2. Technical specifications

project	parameter
video input	HDMI2.0 x1: 4096x2160@60Hz, backward compatible
video output	HDMI2.0 x1: 4096x2160@60Hz, backward compatible
Video loop out	and HDMI output multiplexing: input mode do loop out, support hard loop out
audio input	HDMI embedded audio Single-ended stereo x1: 3.5 Phoenix terminal x3
audio output	HDMI embedded audio Single-ended stereo x1: 3.5 Phoenix terminal x3
serial port	RS-232 x1 /RS-485 x1: 3.5 Phoenix terminal x3
relay	24V weak current relay x1: 3.5 Phoenix terminal x2
I/O	5V x 4: 3.5 Phoenix terminal x5
infrared	and I/O multiplexing
USB	USB2.0 host port x1: red USB2.0 Host Port x2: Black USB2.0 transparent transmission dedicated host port x1: green
network	1000M RJ45 x1 1G SFP x1
power supply	POE:802.3at DC12V / 3A
Video coding performance	EXQ.S:4096x2160@60Hz x1 H.265:4096x2160@60Hz x1 + 2048x1080@60Hz x1 + 1024x540@30Hz x1 JPEG:1024x540@30Hz x1
Video decoding performance	EXQ.S:4096x2160@60Hz x1 / 2048x1080@60Hz x4 H.265:4096x2160@60Hz x1 / 2048x1080@60Hz x4
audio codec	48K sampling, PCM, G.711, AAC
USB	all USB devices
KVM	Visual OSD support Support Rights Management Support 1 keyboard and mouse cross-system Support for large screen monitoring and operation Support inter-agent collaboration
liquid crystal	white OLED Support displaying IP, input signals, device status, etc.
Integrated dialing	Top: RX output Bottom: TX input
network hot standby	optical-electrical
POE/DC power supply hot standby	support
Product name	av access best 4k kvm over ip extender

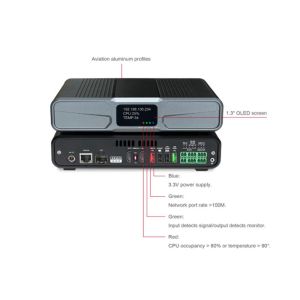

3. wiring instructions for av access best 4k kvm over ip extender:

Product Tags:

Shallow compression kvm over ip extender
