Introduction

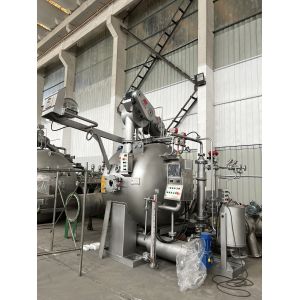

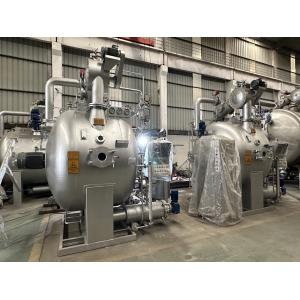

AS-MULTI-FLOW series of high temperature multi-flow flow full mode
dyeing machine (pure air flow dyeing mode, pure over flow dyeing
mode, air-over flow mixed dyeing mode) is a new generation with a
wide range of suitable dyeing cloth, low production cost and
first-class quality of dyed fabric. A carefully designed
circulation system of airflow and liquid flow superposition is used
to make the fabric run smoothly at very low bath ratio 1:3. Fabric
lifting system: the perfect fit of double stage nozzle and guide
pipe makes the fabric running speed up to 400 m / min, suitable for
dyeing process requirements of different fabrics.
Technical Parameters
1.main cylinder
-Maximum fabric speed: 400 m/min
-Maximum working pressure: Mpa 0.4
-Maximum operating temperature: 135℃
-Heating rate: 25℃~100℃ average 5℃/ min ;100℃~130
(dry saturated steam pressure 0.7 MPa)
-Cooling rate: 130℃~100℃ average 3/ min ;100℃~85℃ average 2/ min
(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)
-Liquor Ratio: 1:3
2.multi-function reserve cylinder (optional)
-maximum operating temperature: 85℃
-Maximum working pressure: atmospheric pressure
-Heating rate: 25℃~85℃ average 4/ min
(dry saturated steam pressure 0.7 MPa)
-Capacity: about 1:4~5 capacity of the main cylinder
Model and Specifications
| Model | Capacity (KG) | Dimension(mm) (L*W*H) | General Power (KW) |
| AS-Multi-flow-Mini-25KG | 25 | 3000*3300*3300 | 20.55 |
| AS-Multi-flow-Mini-50KG | 50 | 3290*3560*3410 | 20.55 |
| AS-Multi-flow-Mini-100KG | 100 | 3600*3770*3410 | 24.3 |
| AS-MUITI-FLOW-1T | 250 | 5167*4286*4410 | 24.95 |
| AS-MUITI-FLOW-2T | 500 | 6346*4286*4410 | 44.5 |
| AS-MUITI-FLOW-3T | 750 | 8400*4286*4855 | 66.3 |
| AS-MUITI-FLOW-4T | 1000 | 9900*4300*4855 | 109.5 |
| AS-MUITI-FLOW-6T | 1500 | 12900*4300*4855 | 135.9 |
