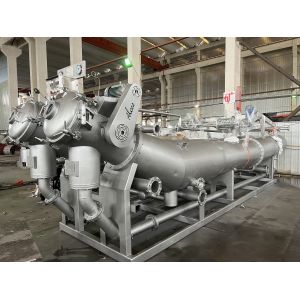

Overflow Woven Fabric Dyeing Machine Adjustable With PLC Based Automation

Introduction

The AS631 dyeing machine is primarily designed for processing woven fabrics, including natural and synthetic fibers, blended fibers such as T/C, T/R, and T/W, as well as high value-added microfibers and composite fibers. With its large-capacity design, the machine ensures smooth operation for both lightweight and heavyweight fabrics while maintaining an efficient low liquor ratio ranging from 1:6 to 1:8. The system incorporates a large-flow nozzle that works in conjunction with a high-lift main pump to enhance uniform dyeing effects through high-speed circulation. For improved operational efficiency, the machine features a special guide cloth device at the tail section that optimizes fabric arrangement and minimizes production stoppages, ensuring continuous and stable running throughout the dyeing process.

Technical Parameters

-Maximum fabric speed: 600-700 m/min
-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃
-Heating rate: 20℃~130℃ average 5℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: 130℃~80℃ average 2.5℃/min
(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:8

Model and Specifications

Aleetex(China) Technology Co., Ltd. united Wuxi Quanrun Machinery Co., Ltd and Zhongyu(Wuxi) Precision Machinery Co., Ltd. as a group company.

We ALEES are specializes in making all types of dyeing machines with good performance more than 20 years.

Package yarn/Loose fiber/Zipper/Muff/Tape/Shoe Lace /Beam Dyeing Machine

Multi-flow Fabric Dyeing Machine

Soft Flow Fabric Dyeing Machine

Overflow Fabric Dyeing Machine

Knit Fabric Jet Dyeing Machine

Woven Fabric Jet Dyeing Machine

Jig Dyeing Machine

Hank Yarn Dyeing Machine

Looking forward to working closely with you to create a new world in the textile industry!
