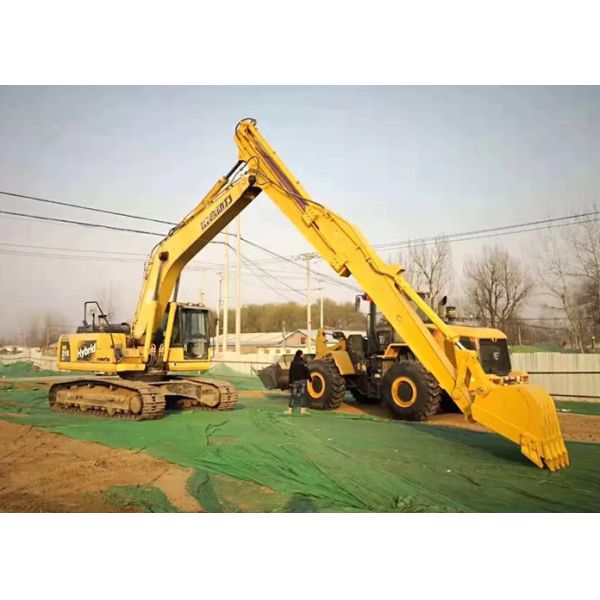

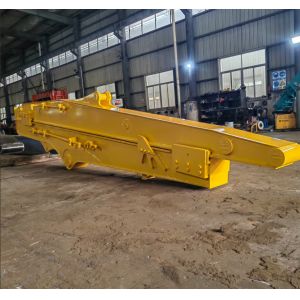

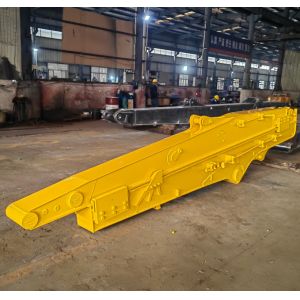

Patented 12M Sliding Arm Of Excavator , Q355B Slide Retractable
Excavator Boom For 30 Ton Excavator
Excavator Slidng Arm
A sliding arm, also known as a telescopic arm or extendable arm, is
a type of hydraulic arm that is attached to an excavator. It is
designed to increase the reach and versatility of the excavator by
allowing the arm to extend and retract. The sliding arm is mounted
on the end of the excavator's boom and consists of a hydraulic
cylinder that can be extended and retracted to adjust the length of
the arm.
The upper part of the excavator sliding arm has a cylinder assembly and a piston rod. The cylinder assembly is mounted to the fixed body, and the piston rod is connected to the movable sliding body. When the cylinder assembly is pressurized, the piston rod extends, pushing the movable sliding body away from the fixed body.
The lower part of the excavator sliding arm consists of a box frame, a base plate, and a rail. The box frame is fixed to the base plate, and the rail is mounted to the box frame. The movable sliding body is mounted with a pair of rollers that run along the rail, allowing it to slide along the rail and move in different directions.
Specification of this Komatsu HB215 Slide Telescopic Arm :
| Min Length | 5320 mm |
| Max Length | 8170 mm |
| Travel length | 2850 mm |
| Bucket Volume | 0.4 Cum |
| Max reach | 12810 mm |
| Max cut depth | 9590 mm |
| Weight | 2080 kg |
| Material | Q345B+Q690D |
| Extra counter weight | no need |
Zhonghe excavator sliding boom arm's features
1. High Strength: The sliding arm of the excavator is made of
high-strength steel, which can withstand the high stress generated
by the excavator during operation.
2. Durability: The sliding arm of the excavator is designed to be
durable, which ensures that it can be used for a long time without
any problems.
3. Smooth Operation: The excavator sliding arm is designed to
provide smooth and precise operation, which allows for efficient
operation of the excavator.
4. Easy Maintenance: The sliding arm of the excavator is designed
to be easy to maintain, which allows for regular inspection and
maintenance of the arm.
5. Reliability: The excavator sliding arm is designed for reliable
operation, which ensures that it will be able to perform its duties
as expected.
Our service:
1. We specialized in customizing all kinds of special boom for all
kinds of excavators.
2. Main Material is Q345B + Q690D,the top and bottom cover plate is
Q690D,and other sheet is Q345B,Pin’s material is 42CrMo4.
3. Before welding,we have use big edge milling machine mill the
edge of the sheet.So the welding can go to the internal of the
steel-sheet and make the structure have higher performance.
4. Welding is protective gas welding,the protective gas is 80%
Argon and 20% CO2 mixed.
5.For all long boom we produced,will supply follow parts:
Bucket:1 pcs
Linkage:1 kits
Bucket cylinder:1 pcs
Hydraulic pipe:1 kits
Lubricant pipe:1 kits
Counter weight(if need):1 pcs
6.If you need extra hydraulic pipe for breaker or other
attachments,we also can prerpare for you.And the attachments pipe
have stop valve in both end,it's easy for replace attachments.
Application:

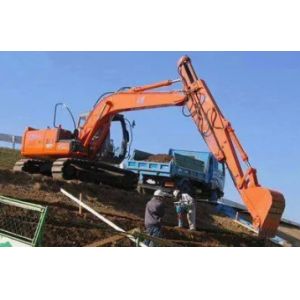

Customer use this kind of Slide arm mainly for excavting deep pit
in their projects.
Specialized in manufacturing various excavator long arms,
demolition arms, sliding arms, telescopic arms, rock arms,
clamshell buckets, grab, etc.
