Cisco C2960 series 8 Ports Gigabit managed network Switch WS-C2960CX-8PC-L

Product Description

WS-C2960CX-8PC-L Overview

WS-C2960CX-8PC-L equips 8 Gigabit Ethernet POE+ ports with 2 x 1 Gigabit copper and 2 x 1 Gigabit SFP uplinks. The POE powers up to 30W/port and supplies total 124W POE budget which can power IP phones, IP Cam or other POE devices.

Quick Specs

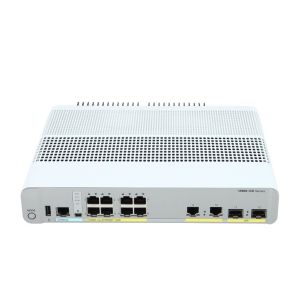

Figure 1 shows the appearance of WS-C2960CX-8PC-L.

Table 1 shows the Quick Specs.

Product Code	WS-C2960CX-8PC-L
Feature Set	LAN Base
Uplink Interfaces	2 x 1G copper plus 2 x 1G SFP
Ports	8 x 10/100/1000 Gigabit Ethernet ports
Available POE Power	124W
Forwarding Bandwidth	12 Gbps
Switching Bandwidth (full-duplex capacity)	24 Gbps
RAM	512 MB
Flash Memory	128 MB
Dimensions	4.44 x 26.9 x 23.8 cm
Package Weight	4.65 Kg

WS-C2960CX-8PC-L Specification

WS-2960CX-8PC-L Specifications
Ethernet Ports	8 x 10/100/1000 Gigabit Ethernet
PoE Output Ports	8 PoE+
Available PoE Power	124W
Uplinks	2 x 1G copper plus 2 x 1G SFP
Default Software	LAN Base
Forwarding Bandwidth	12 Gbps
Switching Bandwidth (full-duplex capacity)	24 Gbps
Flash memory	128 MB
Memory DRAM	512 MB
Max VLANs	255
VLAN IDs	4000
Maximum transmission unit (MTU)	Up to 9000 bytes
Jumbo frames	9198 bytes
Forwarding rate 64 Byte Packet	17.9 mpps
Power connectors	- Customers can provide power to a switch by using the internal power supply. The connector is located at the back of the switch. The internal power supply is an autoranging unit - The internal power supply supports input voltages between 100 and 240VAC - Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Indicators	Per-port status: Link integrity, disabled, activity, speed, full-duplex System status: System, link status, link duplex, link speed
Dimensions (H x W x D)	1.75 x 10.6 x 9.4 in (4.44 x 26.9 x 23.8 cm)
Weight	5.0 lb (2.27 Kg)
Package Weight	10.25 lb (4.65 Kg)
Operating* temperature up to 5000 ft (1524 m)	-5°C to +45°C (+23°F to +113°F)
Operating* temperature up to 10,000 ft (3048 m)	-5°C to +45°C (+23°F to +113°F)
Storage temperature up to 15,000 ft (4572 m)	-25°C to +70°C (-13°F to +158°F)
Operating altitude	Up to 3048 m (Up to 10,000 ft)
Storage altitude	Up to 4000 m (Up to 15,000 ft)
Operating relative humidity	5% to 95% noncondensing
Storage relative humidity	5% to 95% noncondensing
Mean time between failure (MTBF)	569,530
