The Cisco Catalyst 3850 Series provides capabilities that ideally
suited to support the convergence of wired and
wireless access. The new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC)
powers the switch and enables uniform wired-wireless policy
enforcement, application visibility, flexibility, and application
optimization. This convergence is built on the resilience of the
new and improved Cisco StackWise-480 technology.
The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at
Power over Ethernet Plus (PoE+), Cisco Universal
Power Over Ethernet (Cisco UPOE), modular and field-replaceable
network modules, RJ-45 and fiber-based downlink
interfaces, and redundant fans and power supplies.
Product Code | WS-C3850-48F-L |
Device Type | Switch - 48 ports - Managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 (PoE+) |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 800 W |
Performance | Switching capacity: 176 Gbps |
Stacking bandwidth: 480 Gbps |
Capacity | IPv4 routes: 24000 |
NetFlow entries: 48000 |
Switched virtual interfaces (SVIs): 1000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,
IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad
(LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
Power | AC 120/230 V (50/60 Hz) |
Power Redundancy | Optional |
Dimensions (WxDxH) | 44.5 cm x 48 cm x 4.45 cm |
Weight | 8 kg |
Manufacturer Warranty | Limited lifetime warranty |
Bundled Services | Limited lifetime warranty |
Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE+ - 30 W |
1 x USB Type A |
1 x console - mini-USB Type B management |
1 x RS-232 - RJ-45 management |

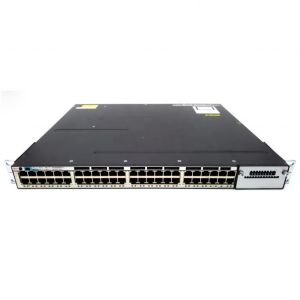

Figure 1 shows the front panel of the WS-C3850-48F-L with a blank
module installed.
Figure 2 shows the back panel of the WS-C3850-48F-L.
In summary, the Cisco WS-C3850-48F-L is a feature-rich,
high-performance switch ideal for organizations
looking to build or upgrade their network infrastructure. Its Layer
3 capabilities, stacking options, robust security
features, energy efficiency, and advanced software make it a
compelling choice for modern enterprise networks.
Whether for core, distribution, or access layers, this switch
provides the reliability and performance required to
support today's demanding applications.
