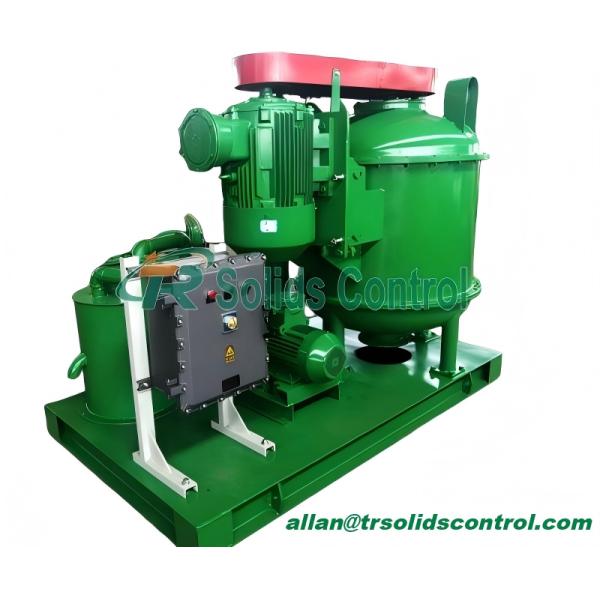

TRZCQ270 High - Performance Vacuum Degasser: Maximize Degassing
Efficiency in Record Time
TRZCQ270 Speedy Vacuum Degasser: Rapidly Propel Gas Elimination for
Industrial Process Optimization
Product Introduction
Our TRZCQ series vacuum degasser, a prime example of this
technology, is an integral part of the solids control and waste
management products that TR provides to the oil and gas drilling
industry. In the oil and gas drilling field, where the presence of
gas in drilling mud can lead to a host of issues such as reduced
drilling efficiency, unstable wellbore conditions, and potential
safety hazards, the TRZCQ series plays a crucial role.
The TRZCQ240, in particular, is engineered with precision. It
features a high - capacity vacuum pump that can generate a powerful
vacuum environment. This allows it to quickly draw in the drilling
mud along with the entrained gases. Once inside the degasser, a
series of baffles and separation chambers are designed to further
enhance the gas - liquid separation process. The separated gases
are then safely vented out, while the clean mud is returned to the
circulation system.
Main Application
TRZCQ series drilling vacuum degasser is used in these industries:
Coal Bed Gas Solids Control System, Oil and Gas Drilling, Drilling
Waste Management, Water Drilling, Oil Sludge Dewatering Systems,
Trenchless HDD & Tunnelling, Oil Mud Seperation, Bored Piling etc.
We will provide our clients high quality products with most
reasonable price, at the same time we also sincerely offer the high
level after sales service for any home or abroad clients.
Advantages of TR Vacuum Degasser
- Belt drive makes it avoid the complexity of the reducing gear, and
guarantee the long time working time without trouble.
- Scientific and reasonable design for structure. It can achieve
effective separation of gas and liquid, filter out impurities, and
ensure exhaust pipe is always clear;
- Vacuum degasser makes mud throw towards barrel wall at a high speed
by rotor. Bubbles in the mud are broken thoroughly, making the
vacuum degasser have high degassing efficiency up to 95%.
- There is a gas-water separator in vacuum degasser, which can avoid
water and gas are discharged at the same time, and also can supply
water to the vacuum pump, saving water and environment-friendly.
- Water ring type of vacuum pump work is always at a constant
temperature state, suitable for flammable and explosive gas
suction.
Technical Parameters of TR Vacuum Degasser
| Model | TRZCQ240 | TRZCQ270 | TRZCQ300 | TRZCQ360 |
| Body Diameter | 700mm | 800mm | 900mm | 1000mm |
| Capacity | 240 m³/h | 270 m³/h | 300 m³/h | 360 m³/h |
| Vacuum Degree | -0.030-0.045Mpa | -0.030-0.050Mpa | -0.030-0.045Mpa | -0.030-0.045Mpa |
| Transmission Ratio | 1.68 | 1.68 | 1.68 | 1.72 |
| Degassing Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
| Motor Power | 15kW | 22kW | 30kW | 37Kw |
| Vacuum Pump Power | 2.2kW | 3kW | 4kW | 7.5kW |
| Impeller Speed | 860r/min | 870r/min | 876r/min | 880r/min |
| Dimension | 1750×860×1500mm | 2000×1000×1670mm | 2250×1330×1650mm | 2400×1500×1850mm |
| Weight | 1100kg | 1350kg | 1650kg | 1800kg |
Operational Theory
TR Vacuum degasser utilize negative pressure by vacuum pump to
withdraw entrained gases from the mud. In order for this to work,
mud is pumped through a venturi, which develops a negative pressure
in the vessel by vacuum pump, thus sucking mud into the unit. The
choice between horizontally- or vertically-mounted units is
typically based on the footprint requirements of the specific rig.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international
brands.
6. Our products have been exported to Argentina, Egypt, US,
Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India,
Indonesia, Vietnam, Malaysia and many other countries.
