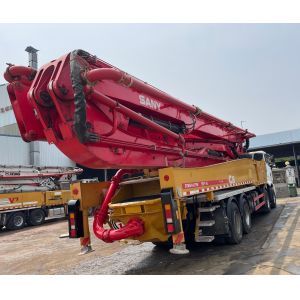

| Vehicle parameters | |
| full length | 14160mm |
| total width | 2550mm |
| Total height | 4000mm |
| Total weight | 44000kg |
| Boom leg parameters | |
| Boom vertical height | 56m |
| Boom horizontal length | 51m |
| Boom vertical depth | 36.6m |
| Minimum unfolded height | 15.2m |
| The length of the first section arm | 11390mm |
| First section boom angle | 89 |
| Second section arm length | 9230mm |
| Second section arm rotation angle | 180 |
| The length of the third section arm | 8750mm |
| Third section arm rotation angle | 180 |
| Fourth section arm length | 11070mm |
| Fourth section arm angle | 240 |
| Fifth section arm length | 8080mm |
| Fifth section arm rotation angle | 210 |
| Sixth section arm length | 3350mm |
| Sixth section arm rotation angle | 110 |
| Turntable rotation angle | ±360 |
| Expansion width of front outriggers | 9470mm |
| Rear outrigger expansion width | 12680mm |
| Pumping system parameters | |
| Concrete theoretical displacement low pressure | 180m³/h |
| Concrete theoretical displacement high pressure | 125m³/h |
| Theoretical pumping pressure low pressure | 8.3Mpa |
| Theoretical pumping pressure high pressure | 12Mpa |
| Theoretical pumping times low pressure | 29/ |
| Theoretical pumping times high pressure | 19/ |
| Conveying cylinder inner diameter | 260mm |
| Conveying cylinder stroke | 2100mm |
| Hydraulic system |
|
| System oil pressure | 32Mpa |
| Fuel tank capacity | 680L |
| Water tank volume | 620L |
| Conveying pipe diameter | 125mm |
| End hose length | 3m |
| End hose diameter | 125mm |
| Chassis parameters | |
| Chassis brand |
|
| Chassis model | SYM5440THB1E |
| Engine model | D12C5-490E0 |
| Engine maximum net power | 348KW/1900rpmkW/rpm |
| Emission Standards | EURO V |
| Fuel tank volume | 600L |
| Emission | 12.12L |
| Maximum speed | 90km/h |
Company Profile
1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used
concrete line pump,Used Truck mounted concrete pump,Concrete
batching plant,used cranes,used excavators,used road machinery,
used piling machinery and so on.Ranging second-hand original
machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction
machinery trading platform.we specialize in construction machinery
wholesale and concrete machinery re-manufacturing for more than 13
years.
3:What are the advantages of re-manufacturing machineries and what
quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new
machine.We set the highest maintenance and re-manufacturing
standard system,strictly inspect and repair according to the
standard,Our each re-manufacturing will go through 14 processes
from admission test to final inspection to make sure the best
quality.
4:How do I know the condition of the original used or
re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of
the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
