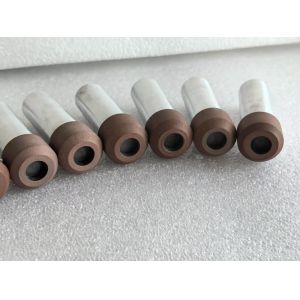

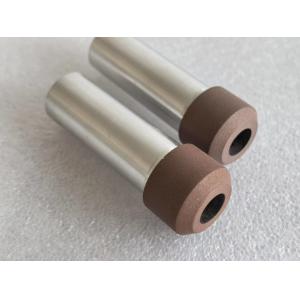

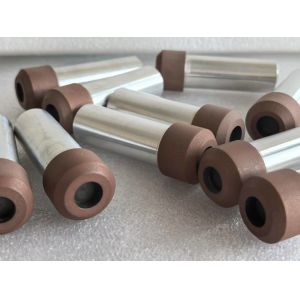

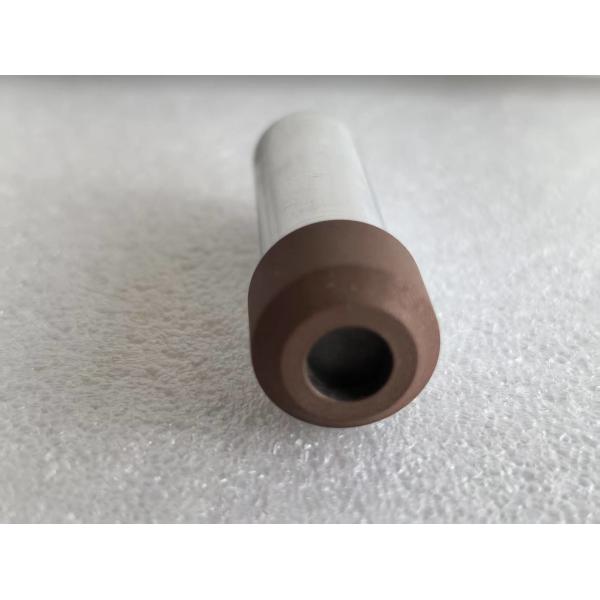

D600 # Customized Diamond Grinding Head Using For Grinding Saphire
When using a diamond grinding head with a grit size of D600# to
process sapphire, the process parameters must be strictly
controlled to avoid material cracking or excessive wear of the
grinding head. The following are key parameters and operating
recommendations:
Grinding head characteristics:
1,Produce as customer require
2,High working efficiency
3,Long working life
4,Top quality
5,Eco-friendly package
Key Parameters:
Speed (RPM) Recommended range: 3000~8000 RPM(Small diameter takes
high value, large diameter takes low value)
Feed speed: 0.01~0.1 mm/s (lower value for fine grinding)
Coolant must be used: Deionized water or special cooling oil, flow
rate ≥5 L/min.
suggestion:
The diamond grinding head with a particle size of D600# should be
based on the core principles of low stress, high cooling, and
progressive cutting, reasonably matching the speed and feed, and
taking into account both efficiency and surface quality. It is
recommended to optimize the parameters through trial grinding and
regularly maintain the grinding head status.
Company profile:
Our company focuses on the research and development and production
of electroplated superhard tools. We have fully automatic
electroplating lines and precision testing laboratories. Our
products have passed ISO 9001 and SGS certification. We customize
solutions according to your needs.
