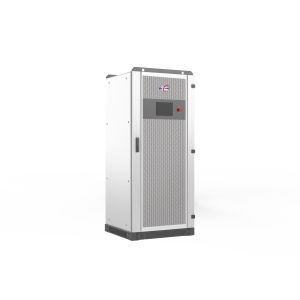

    30KW Power Converter System Pcs Solar Inverter Adjustable Power Redundant

    Ask Lasest Price
    Brand Name : RESUN
    Model Number : PCS-A30-MG
    Price : Negotiable
    Certification : IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
    Payment Terms : T/T
    Supply Ability : 1000
    Delivery Time : 3-30days
    • Product Details
    • Company Profile

    30KW Power Converter System Pcs Solar Inverter Adjustable Power Redundant


    30KW Adjustable power redundant PCS


    Equipped with adjustable power function, it can flexibly adapt to different power consumption scenarios and meet diverse power regulation requirements. ​
    Adopting redundant design of auxiliary power supply significantly reduces the risk of failure and can continue to provide reliable power supply under complex working conditions. ​
    Integrating adjustable power and redundant design, it has high reliability and flexible adaptability, and can be widely used in fields such as photovoltaics and energy storage, providing stable support for power systems.



    KEY STRENGTHS
    Reactive power, active power adjustable.
    Redundant design for auxiliary power supply.
    Multiple working modes are available, which can be flexibly applied to various working scenarios.
    Highest power density, maximum efficiency reach 97.5%.



    Description

    ModelPCS-A30-MG
    DC(battery)
    Voltage range (V)250~850
    Max. current (A)137
    AC(on-grid)
    Max. output power (kW)33
    Rated output power (kW)30
    Rated voltage (V)400
    Voltage range (V)320~460
    Rated current (A)43
    Max. output current (A)48
    Rated frequency (Hz)50/60
    Frequency range (Hz)45~55 / 55~65
    THDi<3%
    Power factor1leading~1lagging(settable)
    Grid type3W+N+PE
    AC(off-grid)
    Rated voltage (V)400
    THDu<1% Linear <5% nonlinear
    Rated frequency (Hz)50/60
    Overload capacity110% long-term
    General data
    Max. efficiency96.3%
    Ingress protectionIP21
    Noise emission (dB)<70
    Operating temperature (℃)-30 ~ +55
    CoolingForced air
    Relative humidity0 ~95% non-condensing
    Max. operating altitude (m)5,000(>3,000 derating)
    Dimension W*D*H (mm)800*800*1,900
    Weight(kg)621
    Self-consumption<0.5%
    On/ off grid switchingAutomatic
    Display and communication
    DisplayLCD touch-screen
    BMS communicationRS485, CAN
    EMS communicationRS485, TCP/IP
    CertificatesIEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017
    ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
