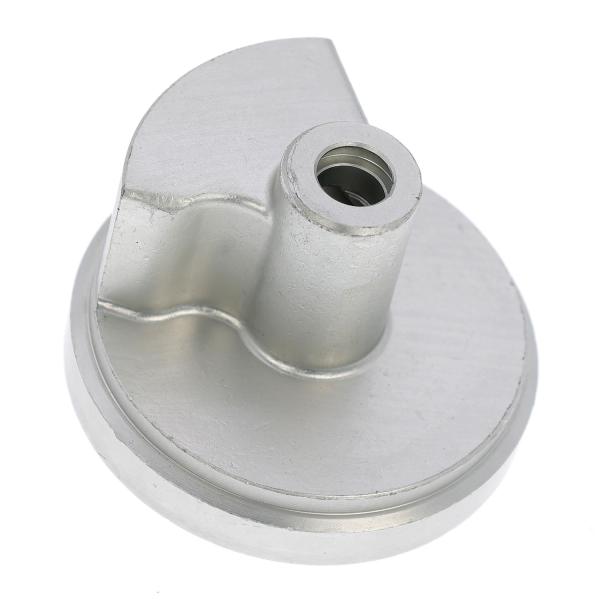

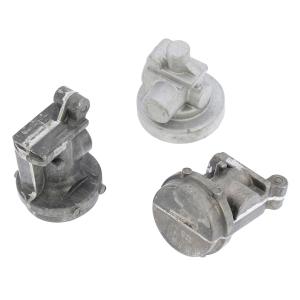

Precision Forged Aluminum Component Transmission Connecting Rods
And Joints
Product Overview
Our precision forged aluminum connecting rods and joints are
engineered for superior performance in transmission and powertrain
applications. Manufactured using advanced forging techniques, these
components deliver exceptional strength-to-weight ratios, fatigue
resistance, and dimensional accuracy, making them ideal for
high-stress automotive, aerospace, and industrial applications.
Key Features & Benefits
✅ Material Excellence
Forged from 6061, 7075, or custom aluminum alloys for optimal
durability and corrosion resistance.
Enhanced grain structure for higher tensile strength compared to
cast or machined parts.
✅ Precision Engineering
Tight tolerances (±0.05mm) for seamless integration into
transmission systems.
CNC-machined finishing for critical surfaces (bearing bores, thread
profiles).
✅ Performance Optimized
30-50% lighter than steel equivalents, reducing rotational mass and
improving efficiency.
Fatigue-tested for long-term reliability under dynamic loads.
✅ Custom Solutions
Tailored designs for gear linkages, shift mechanisms, drivetrain
joints.
Surface treatments available: Hard-coat anodizing, PTFE coating,
shot peening.
Applications
Automotive: Transmission shift rods, clutch linkages, suspension
joints
Aerospace: Flight control linkages, actuator components
Heavy Machinery: Hydraulic system joints, industrial powertrains
Product parameters
| Parameter | Specification |
|---|
| Material | 6061-T6, 7075-T73 (other alloys available) |
| Forging Process | Closed-die hot forging |
| Tolerances | ±0.05mm (standard), ±0.02mm (high-precision) |
| Weight Reduction | 30-50% vs. steel equivalents |
| Tensile Strength | 6061: 310 MPa min | 7075: 570 MPa min |
| Yield Strength | 6061: 275 MPa min | 7075: 505 MPa min |
| Surface Finish | As-forged: Ra 3.2μm | Machined: Ra 0.8-1.6μm |
| Heat Treatment | T6 temper (solution heat treated + artificially aged) |
| Dimensions | Rod Length: 50-1500mm | Joint Diameter: 20-200mm (customizable) |
| Load Capacity | Dynamic: Up to 15kN | Static: Up to 45kN (depends on alloy/size) |
| Surface Treatments | Anodizing (Type II/III), Hard Coat, Powder Coating, PTFE |
| Certifications | ISO 9001, IATF 16949, material certs (EN 10204 3.1/3.2) |
| Testing Standards | Ultrasonic, Hardness (Brinell/Rockwell), Salt Spray (ASTM B117) |
Additional Notes :
- Customization: All parameters adjustable per customer
drawings/requirements
- Prototyping: Available with 5-10 day lead time
- MOQ: 100 pieces for standard sizes (negotiable for custom designs)
FAQ
1. Why choose forged aluminum over cast or machined parts for
transmission applications?
Superior Strength: Forging aligns grain structure for 20-30% higher
fatigue resistance vs casting
Weight Savings: 35-50% lighter than steel while maintaining
comparable load capacity
Reliability: Eliminates porosity risks found in cast parts,
critical for dynamic loads
2. What alloys do you recommend for high-stress transmission
components?
7075-T73: Best for extreme loads (570MPa tensile) with good
stress-corrosion resistance
6061-T6: Cost-effective for moderate loads (310MPa) with excellent
machinability
Custom Alloys: Available for specialized thermal/chemical
environments
3. What tolerances can you maintain on forged connecting rods?
As-Forged: ±0.3mm
Machined Features: ±0.05mm (standard), ±0.02mm (high-precision)
Bore/Thread Finishes: Ra 0.8μm achievable for bearing surfaces
4. How do you ensure quality in forged components?
Process Controls:
Post-Forging Checks:
100% dimensional inspection (CMM)
Lot-sample destructive testing
Surface crack detection (dye penetrant)
5. Can you produce complex geometries like tapered or hollow rods?
Yes, our capabilities include:
Multi-directional forging for tapered profiles
Precision piercing for hollow sections
Flashless forging for near-net-shape parts
6. What surface treatments improve component lifespan?
Hard Anodizing (50-70μm): For wear resistance
Shot Peening: Increases fatigue life by 25-40%
Dry Film Lubricants: For maintenance-free joints
7. What’s your typical production lead time?
Prototypes: 2-3 weeks (including tooling)
Production: 4-6 weeks for first batch (100-1,000pcs)
High Volume: 8-10 weeks (10,000+ pcs with staggered deliveries)
