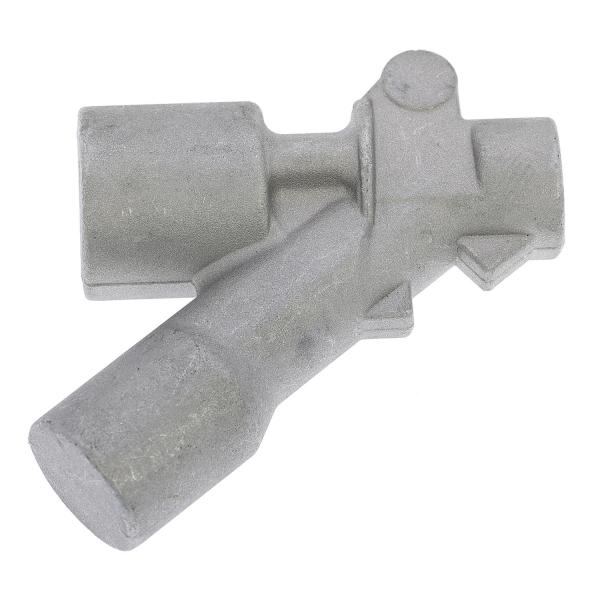

Precision cast iron/zinc T-shaped fixture forged parts for
automotive and motorcycle wiring systems
Product Overview
Our precision cast iron and zinc T-shaped fixtures are engineered
to provide secure, long-lasting wiring harness retention in
automotive and motorcycle applications. Manufactured using advanced
gravity casting and forging processes, these components deliver
superior mechanical strength, corrosion resistance, and dimensional
stability for demanding electrical systems.
Key Features & Benefits
✅ Robust Material Options
- Cast Iron (GG20/GG25): High compressive strength (200-250 MPa) for
extreme load applications
- Zinc Alloy (ZA-8/ZA-12): Excellent EMI shielding + 30% lighter than
iron alternatives
- Optional Forged Steel Inserts: For critical high-stress mounting
points
✅ Precision Manufacturing
- Tolerance: ±0.1mm (cast) / ±0.05mm (machined features)
- Surface Finish: As-cast (Ra 3.2μm) to polished (Ra 0.8μm)
- Integrated Features:
- Cable routing channels (5-25mm diameter range)
- Anti-vibration rubber grommet grooves
- QR code marking pads for traceability
✅ Enhanced Performance
- Vibration Resistance: Withstands 15G @ 50-2000Hz (SAE J2380)
- Temperature Range: -40°C to +120°C (zinc) / +150°C (iron)
- Corrosion Protection: Trivalent chrome plating (12μm) or powder
coating available
✅ Customization Capabilities
- T-Slot Variations: Standard (ISO 299), wide-flange, or asymmetric
designs
- Mounting Options: M4-M10 threaded holes, weld studs, or adhesive
pads
- Compliance Marks: Can include UL, CE, or OEM-specific logos
Applications
Automotive: Engine bay wiring harnesses, EV battery cable
management
Motorcycles: Main wiring loom fixation, handlebar control routing
Commercial Vehicles: Trailer lighting systems, ABS sensor cabling
Aftermarket: Custom bike builds, racing harness securement
Technical Specifications: T-Shaped Wiring Clamps
| Parameter | Cast Iron Version (GG25) | Zinc Alloy Version (ZA-12) | Forged Hybrid Version |
|---|
| Material Standard | DIN 1691 | ASTM B86 | DIN 7526 |
| Tensile Strength | 250 MPa | 280 MPa | 450 MPa (steel insert) |
| Weight | 180-220g (size dependent) | 110-150g | 150-190g |
| Surface Finish | As-cast: Ra 6.3μm | As-cast: Ra 3.2μm | Machined: Ra 1.6μm |
| Cable Bore Size | 8-25mm (±0.2mm) | 5-20mm (±0.15mm) | 6-22mm (±0.1mm) |
| Vibration Resistance | 15G (2000Hz, 100hrs) | 12G (2000Hz, 100hrs) | 20G (2000Hz, 100hrs) |
| Temperature Range | -40°C to +180°C | -40°C to +120°C | -40°C to +200°C |
| Corrosion Protection | Zinc flake coating (20μm) | Trivalent chromate (12μm) | Dacromet coating (15μm) |
| Mounting Force | M6: 15Nm max | M5: 8Nm max | M8: 30Nm max |
| Flame Rating | UL94 V-0 | UL94 V-1 | UL94 V-0 |
| Compliance | ISO 8820-8 | USCAR-25 | LV214-2 |
FAQ
1. Why choose metal clamps over plastic for wiring systems?
Superior Durability: Withstands engine heat (up to 200°C vs.
nylon’s 120°C limit)
Vibration Proof: 3x longer fatigue life than plastic in
high-frequency environments
EMI Protection: Zinc alloys shield sensitive signals (critical for
EV/ADAS systems)
2. How do I select between iron, zinc, or forged versions?
| Factor | Cast Iron (GG25) | Zinc Alloy (ZA-12) | Forged Hybrid |
|---|
| Best For | Heavy-duty truck harnesses | Lightweight motorcycle looms | High-stress EV battery cables |
| Cost | $$ | $ | $$$ |
| Weight Savings | Baseline | 35% lighter | 20% lighter vs. iron |
| Key Advantage | Extreme load capacity | EMI shielding | Combined strength/weight |
3. What certifications do your clamps hold?
Automotive: IATF 16949, LV214-2 (EV)
Motorcycle: JASO D611, BMW GS-90003
Global: REACH, RoHS, IMDS registered
4. Can you customize clamps for specific harness diameters?
Yes, we offer:
Adjustable jaws (5-25mm range)
Rubber-lined grooves (for 0.5mm tolerance grip)
Quick-release designs for serviceability
5. How do you ensure corrosion resistance?
Iron: Zinc-nickel electroplating + sealer (1,200hrs salt spray)
Zinc: Blue trivalent chromate (504hrs ASTM B117)
Special: Dacromet coating for coastal/off-road use
