Detailed Technical Parameters

Product Introduction

This Car Cigar Lighter to OBD Cable seamlessly converts your vehicle’s 12-24V cigar lighter socket into a stable OBD-II port, enabling compatibility with OBD-II diagnostic tools or low-power devices. Ideal for vehicles lacking built-in OBD ports, it ensures reliable power delivery and data transmission while driving.

Key Specs

• Dual-Purpose Design: Combines 12V/24V power delivery (via cigarette lighter) and OBD-II data connectivity for diagnostic tools or IoT devices.
• High-Current Support: Up to 10A continuous load (120W at 12V / 240W at 24V) with built-in 15A blade fuse for overload protection.

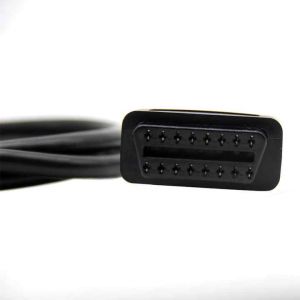

• OBD-II Compatibility: Standard 16-pin male/female connector (selectable) for seamless integration with vehicles (cars, trucks, RVs).
• Enhanced Safety: Flame-retardant PVC jacket, reverse polarity protection, and short-circuit safeguards.
• Plug-and-Play: No wiring needed – connect to lighter socket and OBD-II port for instant power/data access.

Color & Dimensions

• Color Options: Black / Gray (Classic Matte Finish)

• Cable Diameter: 4mm (Flexible & Tangle-Free)

• OBD Connector Size: 28mm x 18mm (Standard Fit)

Product Features

1. Dual-Purpose Design

   • Converts cigar lighter to OBD port for diagnostics or device powering.

2. Fast & Stable Charging

   • Supports 2.4A output for efficient power delivery.

3. Enhanced Durability

   • Reinforced connectors and flame-retardant PVC ensure long-term use.

4. Plug-and-Play

   • No drivers or setup required; compatible with most OBD-II protocols.

5. Safety-Optimized

   • Built-in over-current protection and short-circuit prevention.

Compatible Devices

• Vehicle Models: Compatible with most cars manufactured after 2008 (OBD-II standard).

• Supported Tools:

  • OBD-II code readers/scanners.

  • GPS trackers, dash cams, and low-power car accessories.

• Note: Confirm your device’s voltage requirements (5V DC recommended).

Applications

• Diagnostic Tools: Power OBD-II scanners, code readers, or telematics devices while accessing real-time vehicle data.
• Fleet Tracking: Connect GPS trackers or IoT sensors with uninterrupted power and CAN bus communication.
• Custom Installations: Fuel-powered USB hubs, dash cams, or LED light bars requiring stable 12V/24V supply.
• RV/Off-Road: Power auxiliary devices (fridges, inverters) via OBD-II port in trucks or campers.

Safety Information

• Usage Guidelines:

  • Avoid exposing the cable to extreme heat (>85°C) or sharp objects.

  • Disconnect during vehicle maintenance or non-use.

• Compliance:

  • Manufactured under industry-standard safety protocols (no third-party certifications referenced).

• Warnings:

  • Do not modify or splice the cable.

  • Not for high-power devices (e.g., inverters, heaters).

    Why Choose This Cable?

    • Dual Functionality: Simultaneously power devices and access OBD-II data streams (CAN, K-line).
    • Vehicle-Safe: Reverse polarity protection and ruggedized plugs prevent ECU damage.
    • Universal Fit: Compatible with OBD-II compliant vehicles (post-1996) and 12V/24V systems.
    • Robust Build: Oil-resistant jacket and gold-plated contacts for reliable performance in harsh conditions.

    Certifications & Standards

    • Safety: ISO 7637-2 (EMC)
    • Environmental: RoHS, REACH

    Warranty: 12-month warranty (excludes fuse replacement or data pin misuse). Note:

    • Verify OBD-II pin compatibility – default provides power (Pin 16 + Ground).
    • Do not exceed 10A load – use for low/mid-power devices only.

    Critical Safety Warnings

    • Avoid CAN bus interference – disconnect during ECU firmware updates.
    • Do not modify data pins – improper wiring may disrupt vehicle systems.
    • Unplug during ignition to prevent voltage surges.

    Power Meets Data – Unlock Your Vehicle’s Potential Safely!

    Compatible with OBD-II standards. Not for direct ECU programming, EV hybrids, or inductive loads (e.g., motors).

If you have other needs,

Contact us!!!

Frequently Asked Questions (FAQ)
