Industrial Quick-Change Robotic Tool Changer SQC-A with High Moment Capacity

Ask Lasest Price
Brand Name :	Hyclamavin
Model Number :	SQC-A
Certification :	ISO9001
Price :	USD500-USD4000
Supply Ability :	1000 sets per month
Delivery Time :	4-6 weeks

Add to Cart

Product Details
Company Profile

Industrial Quick-Change Robotic Tool Changer SQC-A with High Moment Capacity

Quick-Change Tool Changer, Pneumatic Lock SQC-A

Product Introduction

Excellent performance

SQC-A automatic tool changers feature a protective system that ensures the tool remains attached even if air pressure drops.
● Fail-safe locking minimizes piston force and secures the tool plate during air failure
● High torque load is supported by the oversized piston and external clamping lock
● All working elements are made from hardened stainless steel
● Manual override possible without spring resistance
● Reduces time needed for maintenance and tool replacement
● Enhances operational safety through automation

Optional spring

SQC-A can include a built-in spring that acts as a backup safety mechanism.
● Increases locking strength of the changer
● Spring prevents tool drop during air interruption, complementing the fail-safe design

Model and Technical Parameters

Model	Recommended handling weight[Kg]	Locking force (5.5bar)[N]	Repeat accuracy [mm]	Master plate weight [kg]	Tool plate weight [kg]	Max. moment My/Mx[Nm]	Max. moment Mz[Nm]	Air connection thread Pneumatic feed- through
SQC-1A	1.4	170	0.01	0.04	0.03	2.75	3.43	4-M5
SQC-5A	8	690	0.02	0.29	0.15	37	50	6-M5
SQC-11A	16	1100	0.02	0.14	0.09	76	105	6-M5
SQC-20A	25	2300	0.02	0.51	0.33	170	218	12-M5
SQC-21A	25	2300	0.02	0.51	0.33	170	229	8-G1/8″
SQC-40A	50	4500	0.02	1.12	0.61	673	673	8-G1/8″
SQC-41A	50	4500	0.02	1.4	0.7	473	649	6-G3/8″ 4-G1/8″
SQC-60A	75	7400	0.02	1.3	0.7	586	315	8-G1/8″
SQC-71A	79	8100	0.02	1.86	1.34	1188	840	8-G1/4″
SQC-76A	100	12000	0.02	2.3	1.4	1625	2100	5-G3/8″
SQC-110A	150	12000	0.02	4	2.1	2350	2350	8-G3/8″
SQC-150A	200	16000	0.02	4.85	2.75	4075	1840	10-G3/8″
SQC-160A	300	31000	0.02	6.45	2.9	7165	3810	5-G3/8″ 4-G1/2″
SQC-300A	450	35000	0.02	11.86	7.34	9870	8450	10-G3/8″

Hot Tags: robotic tool changer, pneumatic locking sqc-a, China, suppliers, manufacturers, factory, custom, price, design, Robot Tool Changer, tool changer adapter, tool changer robot, Automatic Tool Changers, Automatic Robotic Tool Changers, auto tool changer robot

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Shanghai Grand Intelligent Machinery Co., Ltd.,
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

Industrial Quick-Change Robotic Tool Changer SQC-A with High Moment Capacity

Industrial Quick-Change Robotic Tool Changer SQC-A with High Moment Capacity

Industrial Quick-Change Robotic Tool Changer SQC-A with High Moment Capacity

Quick-Change Tool Changer, Pneumatic Lock SQC-A

Product Introduction

High Moment Capacity Robotic Tool Changer

Industrial Quick-Change Robotic Tool Changer

SQC-A Robotic Tool Changer

Industrial Quick-Change Robotic Tool Changer SQC-A with High Moment Capacity

FACTORY

You May Like

SQC-A Pneumatic Tool Changer With Emergency Unlock And Drop Prevention

Heavy-Duty Quick Tool Changer SQC-A for Industrial Automation Equipment

SQC-B Quick-Change Tool Changer with Spring Locking Mechanism

Aluminum Alloy SQC-B Tool Changer for Fast , Safe Tool Replacement

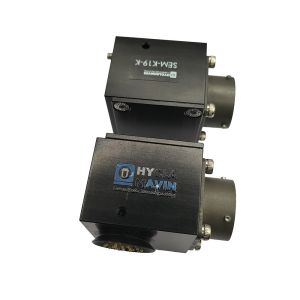

SEM Series Electrical Connectors for Robot Tool Changer Systems
