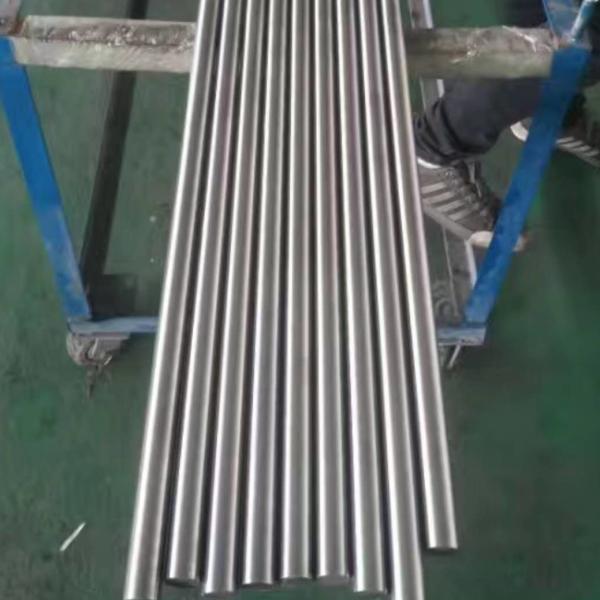

ASTM A182 XM-19 Hot Rolled Stainless Steel Bar 8-300mm UNS S20910
Solid Rod
Product Name | S20910 XM-19 Alloy Round Bar |
Type | Cold drawn, Hot rolled, Forged |
Shape | Round |
| Standard | GB,AISI,ASTM,DIN,EN,JIS |
| Stainless steel 304 / 304L / 310S / 316L / 317L / 904L / 2205 /
2507 / 32760 / 253MA / 254SMo / S31803 / S32750 / S32205 etc |
Monel 400 / Monel K-500 |
Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690
/ Inconel 718 / Inconel X-750 |
Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926 |
Nimonic 50-60 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic
263 / Nimonic L-605 |
Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C /
Hastelloy C-276 / Hastelloy C-22
Hastelloy C-4 / Hastelloy C-200 / Hastelloy G-35 / Hastelloy X /
Hastelloy N |
Austenitic stainless steel 904L / XM-19 / 316Ti / 316LN / 371L /
310S / 253MA |
DP steel 254SMo / F50 / 2205 / 2507 / F55 / F60 / F61 / F65 |
PH stainless steel 15-5PH / 17-4PH / 17-7PH |
| 6mm - 600mm |
| Bright, Pickling, Black, Polished |
| Packing | Wooden box, Waterproof polybag |
Inspection | TUV,SGS,BV,ABS,LR and so on |
| Construction, shipbuilding, Chemical, Pharmaceutical & Bio-Medical,
Petrochemical & Refinery, Environmental, Food Processing, Aviation,
Chemical Fertilizer, Sewage Disposal, Desalination, Waste
Incineration etc. |
| Processing Service | Machining : Turning / Milling / Planing / Drilling / Boring /
Grinding / Gear Cutting / CNC Machining
Deformation processing : Bending / Cutting / Rolling / Stamping
Forged |
| Delivery Time | 7-40 days |
| Trade Term | FOB CIF CFR CIP DAP DDP EXW |
| Payment | T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer
requirements payments for offline orders. |
| Transportation | By air, by sea, by train, by truck |
| Sample | Free |
| Warranty | Trade assurance after sales service |
Forging/hot rolled/ extrusion of steel: round bar/ square bar/
plate/ coil/ wire/ forging
Forging: Shafts with
flanks/pipes/tubes/slugs/bar/donuts/ring/cubes/other shapes
pipe : OD: φ6-219 mm, with wall thickness ranging from 1-35 mm.
Finished goods condition: hot forged/hot rolled +
annealing/normalizing + tempering/quenching +tempering/any
conditions based on the customer's requirement
XM-19/S20910 steel round bar
Surface conditions: scaled (hot working finish)/ground/rough
machining/fine machining/based on the customer's requirement
Furnaces for metallurgical processing: electrode arc +
LF/VD/VOD/ESR/Vacuum consumable electrode.
Ultrasonic inspection: 100% ultrasonic inspection for any
inperfections or based on your requirement
XM-19/S20910 steel round bar
All grades steel bar, steel plate, steel sheet, steel tube, steel
strip, steel wire ETC.
XM-19/S20910 steel round bar
XM-19 Stainless Steel, a highly fabricable, highly weldable,
nitrogen strengthened, austenitic stainless steel, provides twice
the yield strength of stainless steel type 316 and a resistance to
corrosion equivalent to type 316. Even after extreme forming, XM-19
Stainless Steel stays non-magnetic. Due to all these advantages, it
is often used in boat shafting, marine hardware, pumps, valves, and
fasteners. The machinability of XM-19 Stainless Steel is comparable
to that of alloy 316 or 317. It is formable, but there will be more
springback with XM-19 than with other austenitic stainless steels.
To achieve maximum hardness, use cold working. Because of XM-19's
high tendency toward work hardening, process anneal the work piece
after forming to relieve stress.
XM-19/S20910 Steel round bar
XM-19/S20910 steel flat bar
XM-19/S20910 steel sheet
XM-19/S20910 steel plate
XM-19/S20910 steel forging
XM-19/S20910 chemical composition
mechanical properties
| Carbon | | 0.06 max |
| Chromium | | 20.5 - 23.5 |
| Iron | | Balance |
| Manganese | | 4 - 6 |
| Molybdenum | | 1.5 - 3 |
| Nickel | | 11.5 - 13.5 |
| Niobium | | 0.1 - 0.3 |
| Nitrogen | | 0.2 - 0.4 |
| Phosphorus | | 0.04 max |
| Silicon | | 1 max |
| Sulphur | | 0.03 max |
| Vanadium | | 0.1 - 0.3 |
Q1:What product information must I provide before making a
purchase?
Please provide the grade, width, thickness, and surface treatment
requirements, as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai, Tianjin, Qingdao, and Ningbo ports
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or based on BL
copy or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular
basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers
all over the world.
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
Q7:Can you assist me in importing steel products for the first time?
Yes, we have shipping agent who will arrange the shipment with you.
Q8. What is your delivery time?
Within 7 working days after receiving your balance payment.
