BF-UC180F Ultrasound Bronchoscope For Advanced Endobronchial Ultrasound-Guided Transbronchial Needle Aspiration

BF-UC180F ultrasound bronchoscope for advanced Endobronchial Ultrasound-guided Transbronchial Needle Aspiration

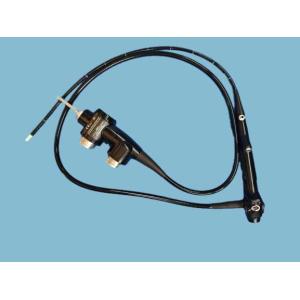

The Olympus BF-UC180F is a linear ultrasound bronchoscope designed for advanced Endobronchial Ultrasound-guided Transbronchial Needle Aspiration (EBUS-TBNA). It is primarily used for staging mediastinal and hilar lymph nodes in patients with suspected lung cancer, providing real-time imaging to guide precise tissue sampling.

Enhanced Diagnostic Yield: Clinical studies have demonstrated higher sensitivity and specificity in detecting lymph nodes ≥5 mm, aiding in accurate diagnosis and staging.

Real-Time Imaging: High-resolution ultrasound imaging allows direct visualization of the EBUS-TBNA needle as it penetrates the lymph node, facilitating optimal capsule-to-capsule technique.

Improved Access: The uniquely designed shorter distal rigid tip enables better approach to challenging nodal stations such as 4L and 10R.

Larger Instrument Channel: The 2.2 mm working channel accommodates larger needles and accessories, enhancing procedural flexibility.

Key Specifications
Outer Diameter: 6.9 mm

Insertion Tube Diameter: 6.2 mm

Working Length: 600 mm

Instrument Channel Diameter: 2.2 mm

Field of View: 80°

Direction of View: 35° forward oblique

Depth of Field: 2–50 mm

Max Angulation:

Up: 120°

Down: 90°

Ultrasound Frequency: Multiple frequencies (5, 7.5, 10, and 12 MHz)

Compatibility: Compatible with Olympus EU-ME2 and other ultrasound processors
