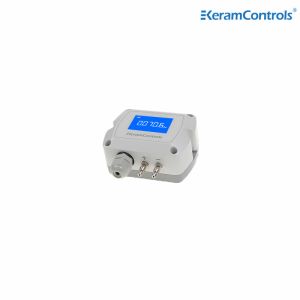

Resplaceable greystone differential pressure transmitter

Description

Differential Pressure (DP) transmitters measure the difference between two pressures. They use a reference point called the low-side pressure and compare it to the high-side pressure. Ports in the instrument are marked high-side and low-side. The DP level transmitter reading can be either negative or positive depending on whether the low-side or high-side is the larger value. A DP transmitter can be used as a gauge pressure transmitter if the low-side is left open to the atmosphere.

Feature

• Ranges from -25/+25Pa to -10000/+10000Pa (according to models)
• Auto zero manual calibration
• Voltage, current, digital signal output
• Standard accuracy <±1% FS
• IP65 house protection

Application

• HVAC system
• Pharmaceutical clean rooms
• Electronic clean rooms
• Medical clean rooms
• Commercial buildings
• Public transport hub

Technical data

Dimension(mm)

Measuring range adjustment

Output setting(3 wire Model)

Manual Zero-point correction

Ordering guide

KDP210-Range-display-output
