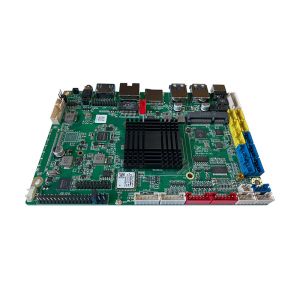

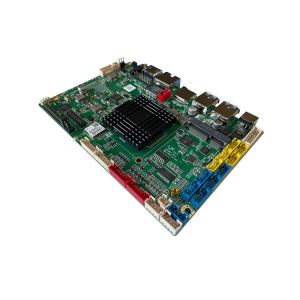

Rockchip RK3588 Android Board 8K Display ARM Industrial Embedded Motherboard

    Buy cheap Rockchip RK3588 Android Board 8K Display ARM Industrial Embedded Motherboard from wholesalers

    Buy cheap Rockchip RK3588 Android Board 8K Display ARM Industrial Embedded Motherboard from wholesalers
    • Buy cheap Rockchip RK3588 Android Board 8K Display ARM Industrial Embedded Motherboard from wholesalers
    • Buy cheap Rockchip RK3588 Android Board 8K Display ARM Industrial Embedded Motherboard from wholesalers

    Rockchip RK3588 Android Board 8K Display ARM Industrial Embedded Motherboard

    Ask Lasest Price
    Brand Name : Innohi
    Model Number : YNH-733
    Price : USD 160/pcs
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1,000,000pcs per month
    Delivery Time : 5-8 work days
    Certification : UL
    • Product Details
    • Company Profile

    Rockchip RK3588 Android Board 8K Display ARM Industrial Embedded Motherboard

    Rockchip RK3588 Android board 8K display ARM embedded industrial motherboard Edge computing AI Vbyone VGA

    1.1 Scope of application

    AI - 733 is a multifunctional intelligent motherboard, commonly used in ARM PC, large-screen splicing , animation and games , conference tablets , edge computing , industrial computers , TV player boxes , cloud servers, smart NVR and other fields.

    1.2 Product Overview

    AI - 733 uses Rockchip RK 3588, a new generation flagship octa-core 64-bit processor. The chip comes with a 6TOPS computing power NPU, and is equipped with Android1 2.0/Ubuntu20.04/Debian11.0 system ( the kernel is Linux 5.10 ) . The GPU uses Mali-G610 MC4 , which has outstanding performance and high cost performance. It supports 8K video encoding and decoding , 8K display output , built-in multiple display interfaces, and supports multi-screen display ; rich high-speed interfaces (PCIe, TYPE-C, SATA, Gigabit Ethernet), which is easy to expand .

    1.3 Features

    • High definition. Supports up to 8K decoding and various LVDS signal LCD displays, EDP screens.
    • multiple upgrade methods such as remote, U disk, TF card, USB cable connected to computer, etc.
    • U disk, TF card configuration screen parameters, plug and play, perfect support for all sizes, all resolution displays.
    • Perfectly supports mainstream industry release software and industry application software, ready to use.
    • Perfectly supports a variety of mainstream touch screens such as infrared, optical, capacitive, resistive, etc., supports HID configuration of driver-free touch screens, and no debugging is required.
    • Perfectly supports the industry's mainstream USB/serial port devices, printers, card readers, password keyboards, fingerprint readers, cameras, ID card recognition, QR code scanners, etc., and provides demo test programs.
    • Highly integrated. With 9 USB ports, 9 serial ports, 4 IO ports, WIFI/RJ45/4G /5G and other networking options.
    • Built-in PCI-E module socket, supports various PCI-E modules such as YUGE and Quectel to access the Internet.

    1.4 Appearance diagram and interface description

    The corresponding interfaces of the numbers in the picture are:

    serial numberPin Definition
    1DC-12V power supply
    21000M LAN*2
    3USB_HOST
    4USB3.0_HOST
    5HDMI TX (HDMI output)
    6USB 0 _OTG ( TYPE-C)
    7TF Card
    8Audio_OUT
    9Uboot button (Uboot can be triggered by a long pin after Audio_out)
    10Power button + reset button
    11Speaker interface
    12MIC interface
    134G module interface
    14M.2 interface optional (5G module, hard disk, etc.)
    15USB_HOST (6)
    16CAN1
    17CAN2 is optional and multiplexed with serial port 5. It has no function by default.
    18Serial port 6 (RS485)
    19Serial port 1 (RS485)
    20GPIO
    21LED+IR
    22IR interface
    23VGA interface optional
    24MIPI screen interface
    25DEBUG serial port 2
    26SATA hard disk interface
    27Dual channel LVDS screen interface
    28LVDS-VCC (screen power supply jumps)
    29CTP touch screen interface (same as No. 48, choose one)
    30FAN Fan Connector
    31RTC-BAT (RTC battery interface)
    32HDMI IN
    33WiFi dual antenna interface
    34Vbyone interface option
    35Serial port 7 (default TTL serial port, optional RS232)
    36Serial port 0 (default TTL serial port, optional RS232)
    37Serial port 3 (default TTL serial port, optional RS232)
    38Serial port 8 (default TTL serial port, optional RS232)
    39Serial port 4 (default TTL serial port, optional RS232)
    40Serial port 5 (default TTL serial port, optional RS232)
    41EDP screen interface
    42SATA_PWR (SATA hard disk power supply)
    43Secondary screen backlight interface
    44Main screen backlight interface
    45Power input interface
    46SIM-CARD
    47MIPI-CAM ( MIPI Camera Interface )
    48CTP touch screen interface PFC seat (same as No. 29, choose one)
