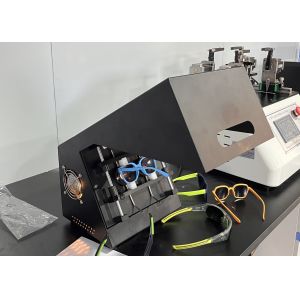

Polarization Axis Position Tester for Sun Glasses

Polarization Axis Position Tester

Production Introduction

The polarization axis tester is based on standards GB10810.3 and QB2659-2004 (the polarization direction test of polarizing lenses for motor vehicle drivers' special glasses requires the design of test instruments).

The instrument is to cut a pair of polarizers into the polarization direction and the horizontal direction of the Angle of ±3°, and then to form the upper and lower half of the polarizer of the viewing area. And fit on the glass plate to form the semi-shade polarizer, to measure the polarization direction of the lens, for measuring the axial deviation of the polarized lens.

Technical parameter

1. Reading dial: -15 to +15°

2. Minimum reading: 1°

3. Light source: sodium lamp (589nm)

4. Overall dimensions :27*37*34cm (L*W*H)

5. Weight :4 Kg

6. Input voltage: AC100~240V, 50/60Hz

The standards

QB/T 2506-2017 and GB 10810.1-2005 (the polarization direction test of polarizing lenses for motor vehicle drivers' special glasses requires the design of test instruments).

GB 39552.1-2020 (Sunglasses and sun lenses - Part 1: General requirements)
