    Steel Tank Shell Weld Planisher Longitudinal Flatten Planishing Machine

    Ask Lasest Price
    Brand Name : Trancar Industries
    Model Number : TCM-LF
    Certification : CE/ISO
    Price : USD 9000-25000 Dollar per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 20 sets per Month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

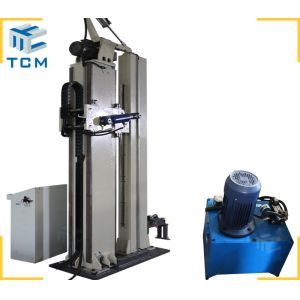

    Steel Tank Shell Weld Planisher Longitudinal Flatten Planishing Machine

    Steel tank longitudinal welding seams planishng machine long welding seam planishing

    TCM-LF automatic welding seam planishing machine is designed for steel tank shell welded seams surface treatment before polishing such as flatten & crush & planishing treatment after welding,and to make steel tank with better surface thus to get higher quality Ss tanks.It’s mainly for crushing steel tank longitudinal welded seams & lines,crushing tank vertical welded joints and planishing vessel longitudinal welding seams.It is widely applied in the industries of pharmaceuticals,chemical,environmental purification,food & beverage, water filtration,etc.


    Steel tank longitudinal welding seams planishng machine parameter:

    Normal configuration(customer design acceptable)

    Steel metal tank size

    Tank shell diameter

    ≧ 500 mm

    Tank / Welded Seam Length

    1800 mm /Custom design

    Tank shell Max.Weight

    1 Ton / 2 Ton / 5 Ton /10 Ton

    Flatten Roller Move Speed

    ≧2500 mm/minute

    Welded Seam Width

    50-70mm / Based on demands

    Flatten machine size

    Machine Dimension

    2000*900*3200mm

    Operating pressure

    12 Mpa

    Input total Power

    /

    5 kw

    Power Supply

    380V 415V / 50Hz 60HZ / 3p or Customization

    Machine Weight

    /

    2200kg

    Color

    Grey/Green/Blue/Red/Yellow Custom design

    welding seam planishing machine.jpg


    Contact Trancar Industries for more welds flatten planishing machine and solutions.
