2-Jaw Pneumatic Parallel Long Stroke Gripper THP
Product Information
Excellent performance
1. THP series gripper with stepless stroke adjustment.
2. THP series gripper, with strong square rail, with high retention
and torque.
3. THP series gripper, with a variety of air interface, a variety
of installation methods.
4. THP series gripper, have a large grasping stroke while
maintaining a small overall size.

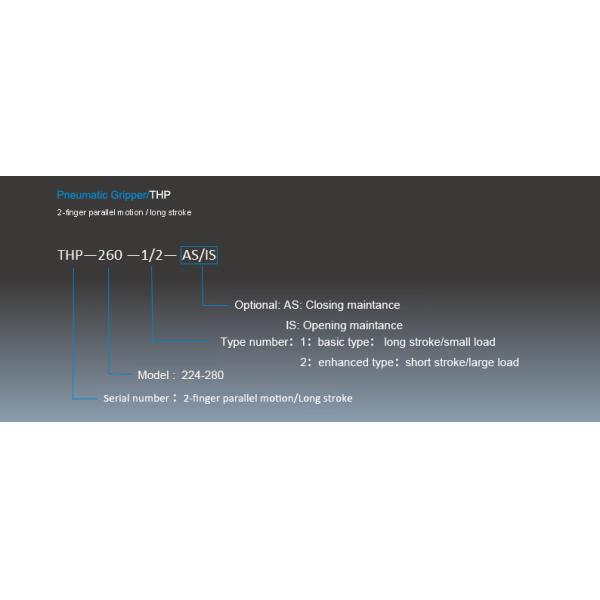

Model and Technical Parameters
| Type | Stroke per jaw [mm] | Closing/ opening force[N] | Min. spring force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| THP-224-1 | 12 | 160/165 | | 0.45 | 0.8 | 0.04/0.04 | 0.05 | 40 |
| THP-224-1-AS | 12 | 170/- | 10 | 0.52 | 0.8 | 0.04/0.06 | 0.05 | 40 |
| THP-224-2 | 6 | 340/350 | | 0.45 | 1.7 | 0.04/0.04 | 0.05 | 40 |
| THP-224-2-AS | 6 | 370/- | 30 | 0.52 | 1.7 | 0.04/0.06 | 0.05 | 40 |
| THP-240-1 | 20 | 440/450 | | 1.2 | 2.2 | 0.08/0.08 | 0.05 | 40 |
| THP-240-1-AS | 20 | 515/- | 75 | 1.3 | 2.2 | 0.08/0.10 | 0.05 | 40 |
| THP-240-2 | 8 | 1110/1130 | | 1.2 | 5.5 | 0.08/0.08 | 0.05 | 40 |
| THP-240-2-AS | 8 | 1300/- | 190 | 1.3 | 5.5 | 0.08/0.10 | 0.05 | 40 |
| THP-260-1 | 30 | 675/700 | | 2.9 | 3.3 | 0.10/0.10 | 0.05 | 40 |
| THP-260-1-AS | 30 | 810/- | 135 | 3.0 | 3.3 | 0.10/0.15 | 0.05 | 40 |
| THP-260-2 | 10 | 2140/2200 | | 2.9 | 10.7 | 0.10/0.10 | 0.05 | 40 |
| THP-260-2-AS | 10 | 2500/- | 360 | 3.0 | 10.7 | 0.10/0.15 | 0.05 | 40 |
| THP-280-1 | 40 | 1400/1450 | | 8.1 | 7 | 0.20/0.20 | 0.05 | 40 |
| THP-280-1-AS | 40 | 1700/- | 300 | 8.3 | 7 | 0.20/0.25 | 0.05 | 40 |
| THP-280-2 | 15 | 3700/3800 | | 8.1 | 18.5 | 0.20/0.20 | 0.05 | 40 |
| THP-280-2-AS | 15 | 4500/- | 800 | 8.3 | 18.5 | 0.20/0.25 | 0.05 | 40 |
